Quantity:
Item: 210.015.011.V - 15mm single bellows Vinyl suction cup (VC B15)
| |
Item#: 210.015.011.V
Price: $3.82 ea.
|

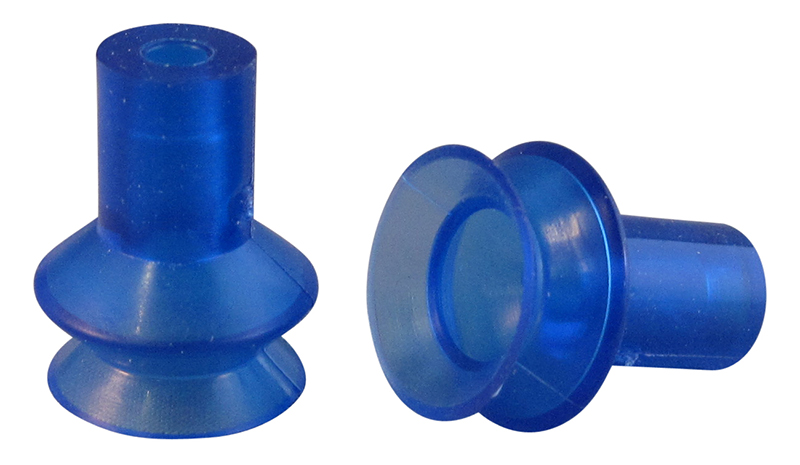

15mm single bellows Vinyl suction cup (VC B15)
General Specifications
Style: Bellows
Cleats: No
Material: Vinyl
Thread Size: None
Bellows: 1.5
Outside Diameter: 15.0mm
Weight(lbs): 0.0026
Color: Blue Vinyl
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 210.015.011.V
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.32 lbs. |
0.16 lbs. |
| 18"Hg |
0.98 lbs. |
0.49 lbs. |
| 27"Hg |
1.47 lbs. |
0.73 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: VC-B15, 23.015.098.V |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Vinyl |
Excellent |
Good |
Poor |
-4 to 176 °F (-20 to 80 °C) |
Video of Product in Action
No Videos Available for: 210.015.011.V
No CAD files available for this Product
Dimensional drawing for Item: 210.015.011.V
Click on the image to enlarge
Parts and accessories for Suction Cup: 210.015.011.V
No parts or accessories related to this item were found.
