Item: 25B.004.002.02 - 4.2mm 2.5 bellows FDA Silicone suction cup
|
Item#: 25B.004.002.02 Price: $6.08 ea.
|

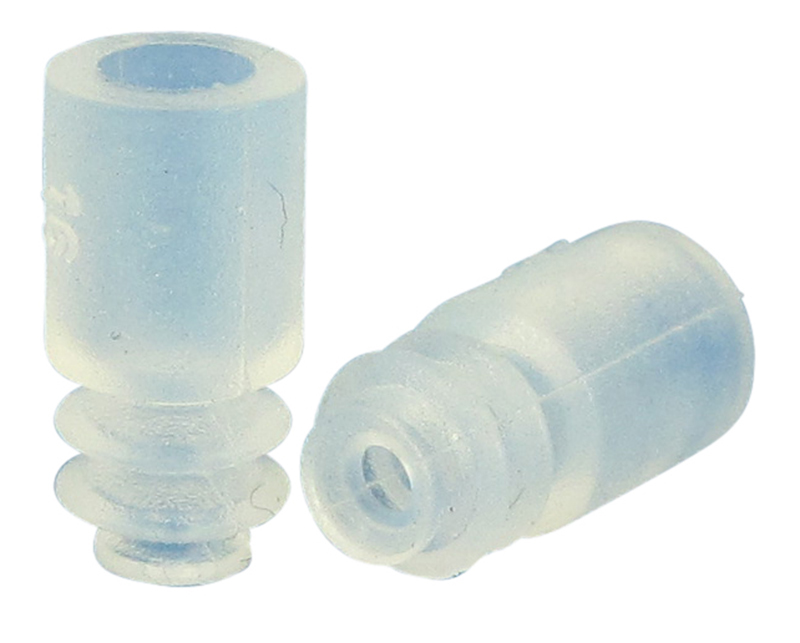

4.2mm 2.5 bellows FDA Silicone suction cup
General Specifications
Style: Bellows Cleats: No Material: Silicone Thread Size: None Bellows: 2.5 Outside Diameter: 4.2mm Weight(lbs): 0.0008 Color: Translucent Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 25B.004.002.02
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
0.02 lbs. |
0.01 lbs. |
18"Hg |
0.07 lbs. |
0.03 lbs. |
27"Hg |
0.11 lbs. |
0.05 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
Recommended replacement for: 220.004.042.02 |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: 25B.004.002.02
No CAD files available for this Product
Dimensional drawing for Item: 25B.004.002.02
Click on the image to enlarge
Parts and accessories for Suction Cup: 25B.004.002.02
Fitting Image for 130.134-2 |
General Specifications
Material: Nickel Plated Brass
Weight: .0015(lbs)
Dimensions: M5 male
Price: $1.31 each
Description: M5 male barb fitting
Add to Cart
|
Dimensional Fitting Drawing for 130.134-2 |
|
---|
