Item: V-ZPT10BN-M5F - 12mm single bellows NBR suction cup with M5 femal... (Full Description below)
| |
Item#: V-ZPT10BN-M5F
Price: $10.68 ea.
|

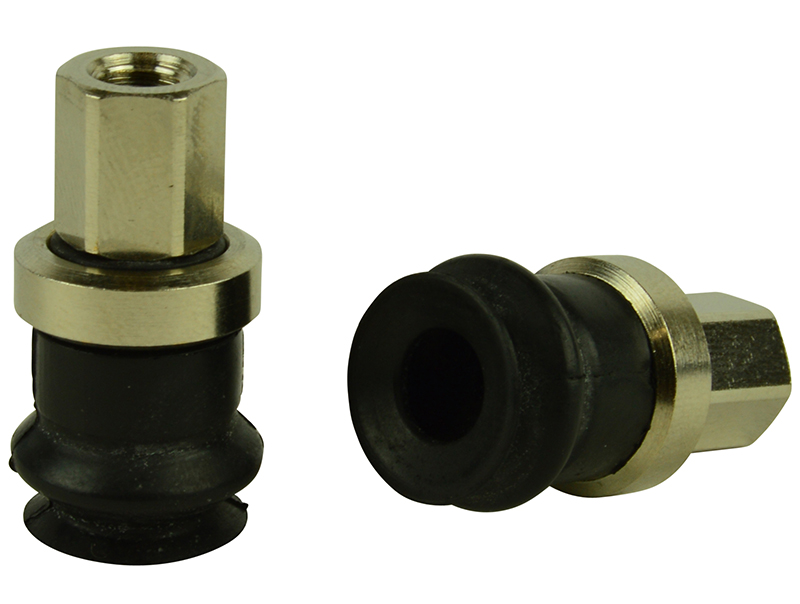

12mm single bellows NBR suction cup with M5 female fitting
General Specifications
Style: Bellows
Cleats: No
Material: NBR
Thread Size: M5 female
Bellows: 1.5
Outside Diameter: 12.0mm
Weight(lbs): .0150
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item V-ZPT10BN-M5F
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.21 lbs. |
0.10 lbs. |
| 18"Hg |
0.63 lbs. |
0.31 lbs. |
| 27"Hg |
0.94 lbs. |
0.47 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: ZPT10BN-B5 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: V-ZPT10BN-M5F
No CAD files available for this Product
Dimensional drawing for Item: V-ZPT10BN-M5F
Click on the image to enlarge
Parts and accessories for Suction Cup: V-ZPT10BN-M5F
Fitting Image for V-ZPT2-M5F |
General Specifications
Material: Aluminum
Weight: .0085(lbs)
Dimensions: M5 female
Description: M5 female fitting for V-ZP 10-16mm cups
*This fitting is included with the cup(V-ZPT10BN-M5F)
|
Dimensional Fitting Drawing for V-ZPT2-M5F |
|
|---|
