Item: PA3.5X7-SIT-M3 - 3.5mm x 7mm oval FDA Silicone suction cup with M3... (Full Description below)
|
Item#: PA3.5X7-SIT-M3 Price: $9.64 ea.
|
3.5mm x 7mm oval FDA Silicone suction cup with M3 male fitting
General Specifications
Style: Oval Cleats: No Material: Silicone Thread Size: M3 male Outside Diameter1: 7.0mm Outside Diameter2: 3.5mm Weight(lbs): .0022 Color: Translucent Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PA3.5X7-SIT-M3
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
0.02 lbs. |
0.01 lbs. |
18"Hg |
0.10 lbs. |
0.05 lbs. |
27"Hg |
0.16 lbs. |
0.08 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: PA3.5X7-SIT-M3
No CAD files available for this Product

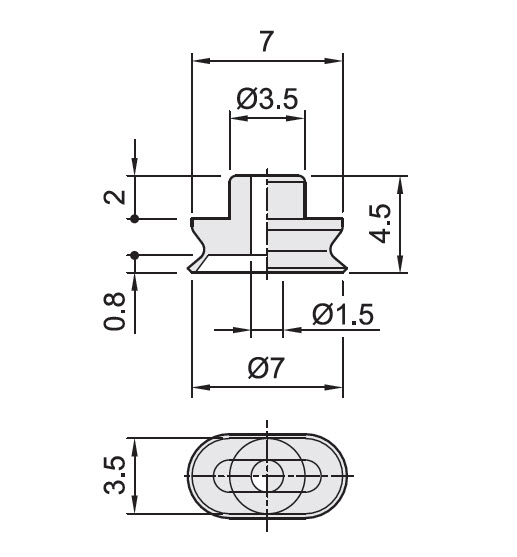

Dimensional drawing for Item: PA3.5X7-SIT-M3
Click on the image to enlarge
Parts and accessories for Suction Cup: PA3.5X7-SIT-M3
Fitting Image for 130.025 |
General Specifications
Material: Aluminum
Weight: 0.002(lbs)
Dimensions: M3 male
Description: M3 male fitting
*This fitting is included with the cup(PA3.5X7-SIT-M3)
|

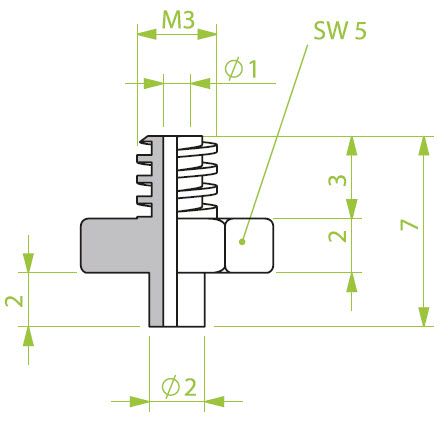

Dimensional Fitting Drawing for 130.025 |
|
---|
