Item: SMB-30C-SI - 30mm multiple bellows silicone suction cup
|
Item#: SMB-30C-SI Price: $11.38 ea.
|
30mm multiple bellows silicone suction cup
General Specifications
Style: Bellows Cleats: No Material: Silicone Thread Size: None Bellows: 2.5 Outside Diameter: 30.0mm Weight(lbs): .0165 Color: Red Lifting Capacity: See Chart [X] CloseLifting Capacity for Item SMB-30C-SI
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
1.31 lbs. |
0.65 lbs. |
18"Hg |
3.94 lbs. |
1.97 lbs. |
27"Hg |
5.91 lbs. |
2.95 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
Recommended replacement for: VAPH-30C-3, star |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: SMB-30C-SI
No CAD files available for this Product

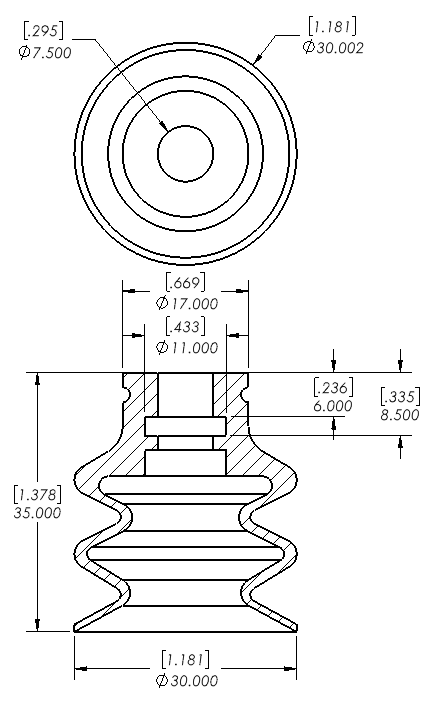

Dimensional drawing for Item: SMB-30C-SI
Click on the image to enlarge
Parts and accessories for Suction Cup: SMB-30C-SI
No parts or accessories related to this item were found.
