Item: PLS-M38B-NCE-020 - 3/8 Barb MINI strainer. Nylon top, Clear bowl, E... (Full Description below)
| | Item#: PLS-M38B-NCE-020
Price: $15.71 ea.
|

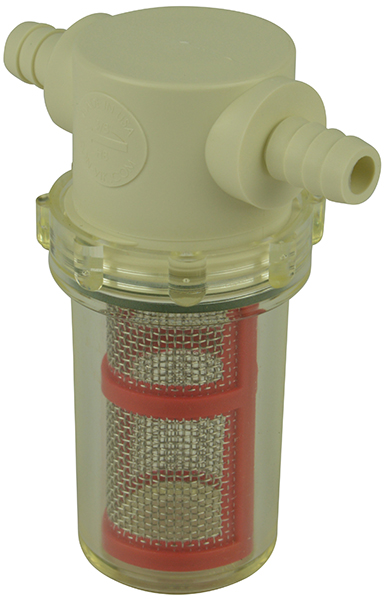

3/8 Barb MINI strainer. Nylon top, Clear bowl, EPDM gasket, 20 mesh SS element.
General Specifications
Use: Not for home use
Type: Mini Series in-line strainer
Connection Type: Hose Barb
Connection: 3/8"
Top Material: White Nylon
Bowl Material: Clear Nylon
Gasket Material: EPDM (red)
Mesh Screen: 20 Mesh (915 micron)
Filter Area: 7.71(Sq In)
Product Weight(lbs): 0.14
 Recommended replacement for: bouncer, BIF001, B01JWO5RK2 |
|
|
|
Additional Information
CAD files for this Product
N/A
Temperature Ratings for Strainer: PLS-M38B-NCE-020
Dimensional drawing for Item: PLS-M38B-NCE-020
Click on the image to enlarge
Parts and accessories for Item: PLS-M38B-NCE-020
|
Description: Mini Series Clear Nylon bowl (gasket sold separately)
General Specifications
Type: Mini Series
Material: Clear Nylon
Price: $4.60 each
Add to Cart
|
Dimensional Fitting Drawing for SB-M-CN |
|
|---|
|
Description: LP Long 20x20 mesh caged Poly SS element (915 micron), Red
General Specifications
Type: Mini Series
Material: SS 304, Polypropylene
Price: $2.78 each
Add to Cart
|
Dimensional Fitting Drawing for SE-M-20CSS |
|
|---|
Replacement Gaskets Item#: SG-S-E |
Description: Low Profile Series EPDM gasket - Red. Sold individually.
General Specifications
Type: Low Profile Series, Mini Series
Material: EPDM
Price: $0.50 each
Add to Cart
|
Dimensional Fitting Drawing for SG-S-E |
|
|---|
