Quantity:
Item: MB35P-3060-F - 35mm 2.5 bellows dual durometer Polyurethane suct... (Full Description below)
| |
Item#: MB35P-3060-F
Price: $19.16 ea.
|

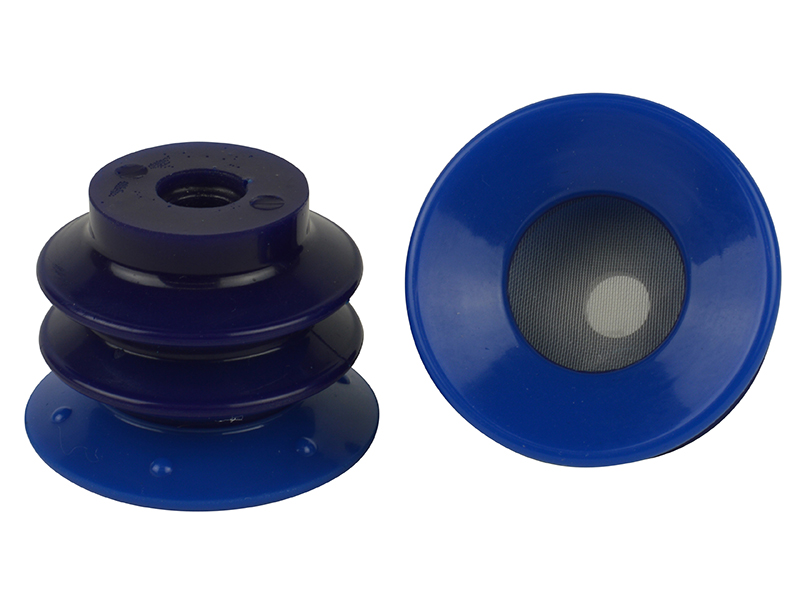

35mm 2.5 bellows dual durometer Polyurethane suction cup with blended Nylon filter screen
General Specifications
Style: Bellows
Cleats: No
Material: Polyurethane
Thread Size: None
Bellows: 2.5
Outside Diameter: 35.0mm
Weight(lbs): 0.011
Color: Blue
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item MB35P-3060-F
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.78 lbs. |
0.89 lbs. |
| 18"Hg |
5.36 lbs. |
2.68 lbs. |
| 27"Hg |
8.05 lbs. |
4.02 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: BX35P.4K.F |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Polyurethane |
Excellent |
Excellent |
Excellent |
50 to 122 °F (10 to 50 °C) |
Video of Product in Action
No Videos Available for: MB35P-3060-F
No CAD files available for this Product
Dimensional drawing for Item: MB35P-3060-F
Click on the image to enlarge
Parts and accessories for Suction Cup: MB35P-3060-F
No parts or accessories related to this item were found.
