Item: V-ZP20CN - Flat suction cup with cleats - NBR
| |
Item#: V-ZP20CN
Price: $3.31 ea.
|

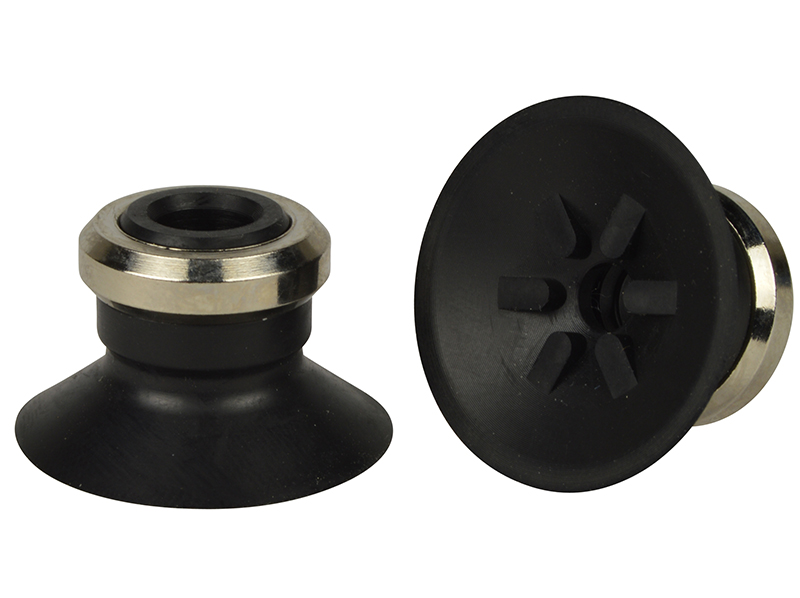

Flat suction cup with cleats - NBR
General Specifications
Style: Flat
Cleats: Yes
Material: NBR
Thread Size: None
Outside Diameter: 20.0mm
Weight(lbs): 0.033
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item V-ZP20CN
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.58 lbs. |
0.29 lbs. |
| 18"Hg |
1.75 lbs. |
0.87 lbs. |
| 27"Hg |
2.62 lbs. |
1.31 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: ZP20CN, ZP20CN-X19, ZP20CN |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: V-ZP20CN
No CAD files available for this Product

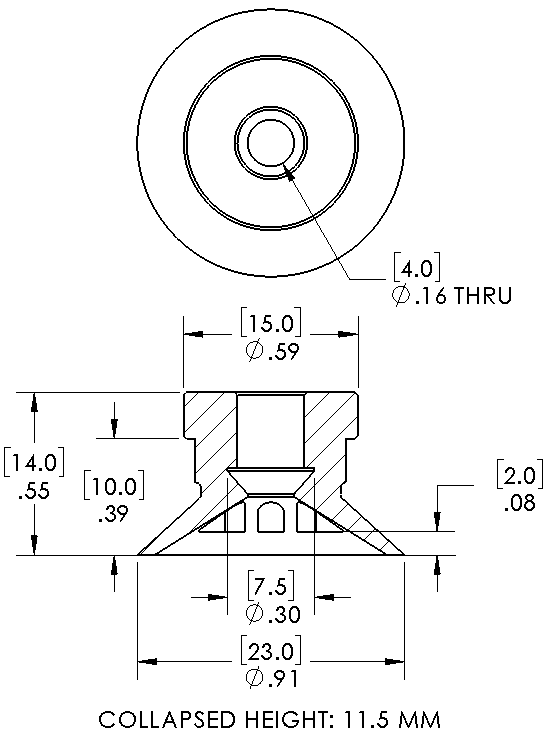

Dimensional drawing for Item: V-ZP20CN
Click on the image to enlarge
Parts and accessories for Suction Cup: V-ZP20CN
No parts or accessories related to this item were found.
