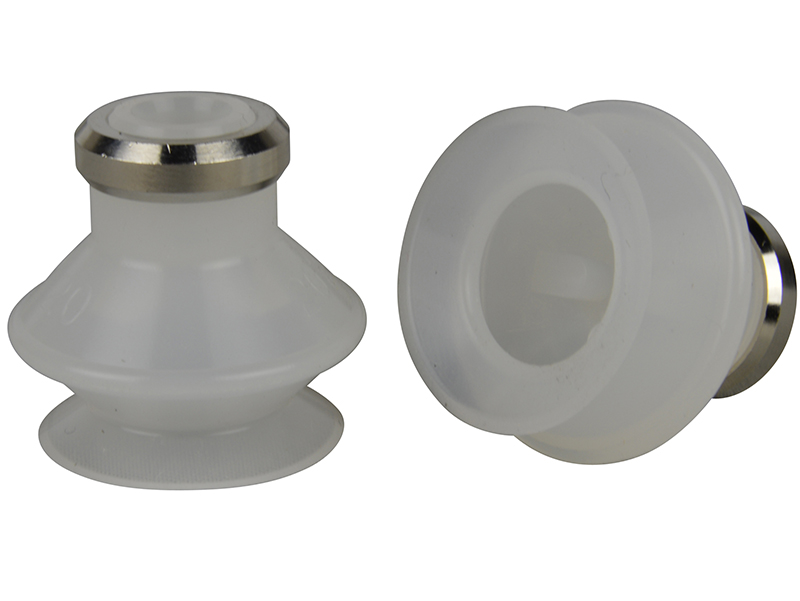

Item: V-ZP20BS - 20mm single bellows silicone suction cup
| |
Item#: V-ZP20BS
Price: $5.44 ea.
|
20mm single bellows silicone suction cup
General Specifications
Style: Bellows
Cleats: No
Material: Silicone
Thread Size: None
Bellows: 1.5
Outside Diameter: 20.0mm
Weight(lbs): 0.033
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item V-ZP20BS
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.58 lbs. |
0.29 lbs. |
| 18"Hg |
1.75 lbs. |
0.87 lbs. |
| 27"Hg |
2.62 lbs. |
1.31 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: ZP20BS, ZP20BS-X19, ZP20BS |
|
|
|
Material Specifications
Video of Product in Action
No Videos Available for: V-ZP20BS
No CAD files available for this Product
Dimensional drawing for Item: V-ZP20BS
Click on the image to enlarge
Parts and accessories for Suction Cup: V-ZP20BS
No parts or accessories related to this item were found.
