Item: 018020A - 80mm flat NBR suction cup with cleats
| |
Item#: 018020A
Price: $13.07 ea.
|

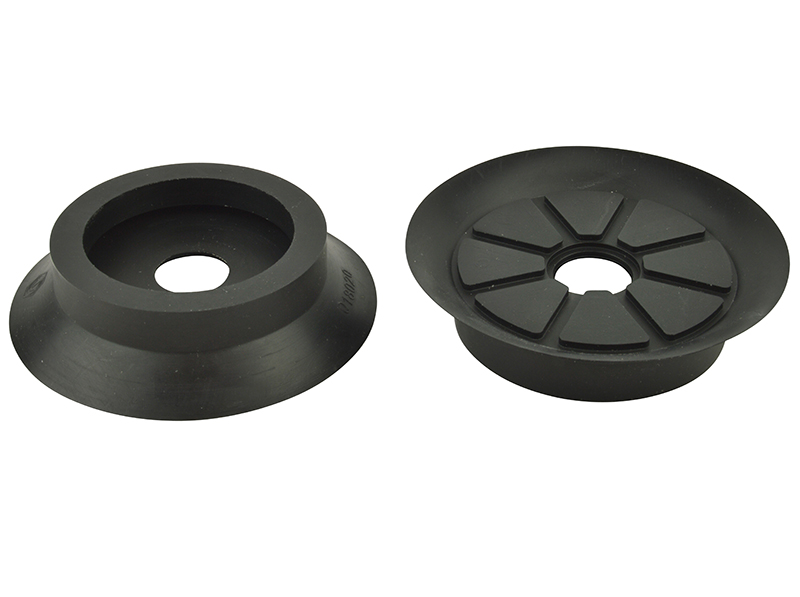

80mm flat NBR suction cup with cleats
General Specifications
Style: Flat
Cleats: Yes
Material: NBR
Thread Size: None
Outside Diameter: 80.0mm
Weight(lbs): .048
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 018020A
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
9.34 lbs. |
4.67 lbs. |
| 18"Hg |
28.04 lbs. |
14.02 lbs. |
| 27"Hg |
42.07 lbs. |
21.03 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: 018020A
No CAD files available for this Product

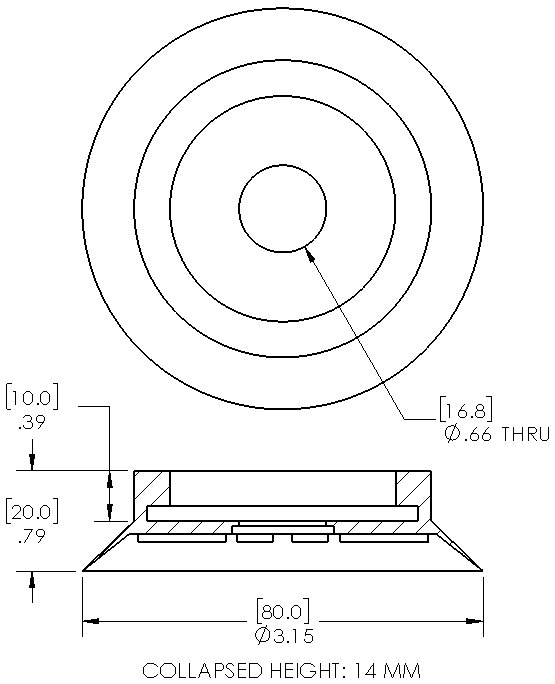

Dimensional drawing for Item: 018020A
Click on the image to enlarge
Parts and accessories for Suction Cup: 018020A
No parts or accessories related to this item were found.
