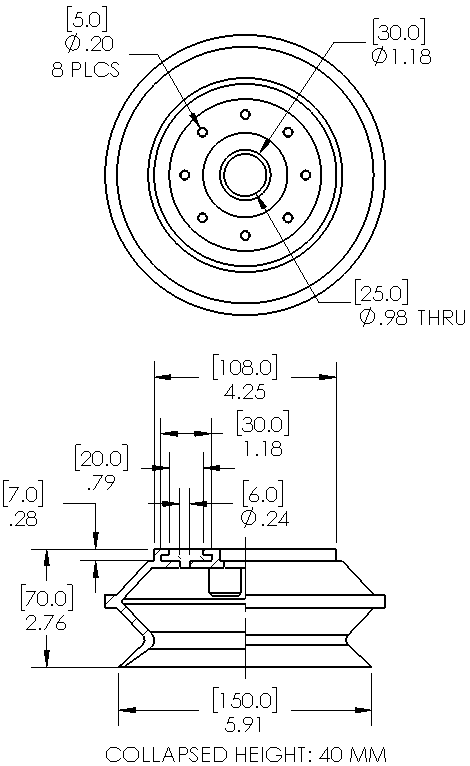

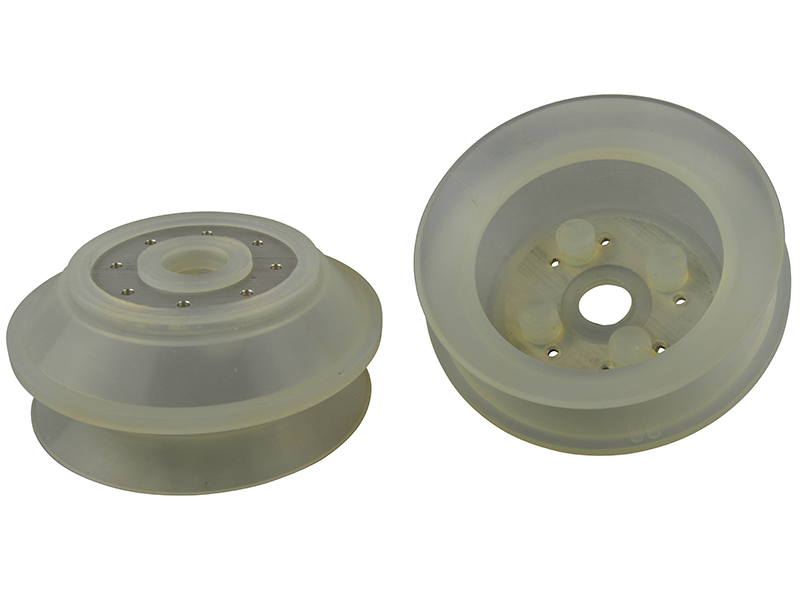

Home > Products > Suction Cups > PSB150-SIT-W Product DetailsDimensional DrawingParts & Accessories Quantity: Item: PSB150-SIT-W - 150mm single bellows FDA Silicone suction cup wit... (Full Description below) Item#: PSB150-SIT-W Price: $89.78 ea. 150mm single bellows FDA Silicone suction cup with washer General Specifications Style: Bellows Cleats: No Material: Silicone Thread Size: None Bellows: 1.5 Outside Diameter: 150.0mm Weight(lbs): .6834 Color: Translucent Lifting Capacity: See Chart                                                                                                                                  [X] Close Lifting Capacity for Item PSB150-SIT-W    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 32.86 lbs. 16.43 lbs. 18"Hg 98.60 lbs. 49.30 lbs. 27"Hg 147.91 lbs. 73.95 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO   Recommended replacement for: 210.150.035.02 Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos Available for: PSB150-SIT-W No CAD files available for this Product Dimensional drawing for Item: PSB150-SIT-W                                Click on the image to enlarge Parts and accessories for Suction Cup: PSB150-SIT-W                                No parts or accessories related to this item were found.

---
