Quantity:
Item: V-ZPT02UN-M5 - 2mm flat NBR suction cup with M5 male fitting
| |
Item#: V-ZPT02UN-M5
Price: $5.06 ea.
|
2mm flat NBR suction cup with M5 male fitting
General Specifications
Style: Flat
Cleats: No
Material: NBR
Thread Size: M5 male
Outside Diameter: 2.6mm
Weight(lbs): .0055
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item V-ZPT02UN-M5
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.00 lbs. |
0.00 lbs. |
| 18"Hg |
0.02 lbs. |
0.01 lbs. |
| 27"Hg |
0.04 lbs. |
0.02 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: ZPT02UN-A5, ZPT02UN-A5 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: V-ZPT02UN-M5
No CAD files available for this Product

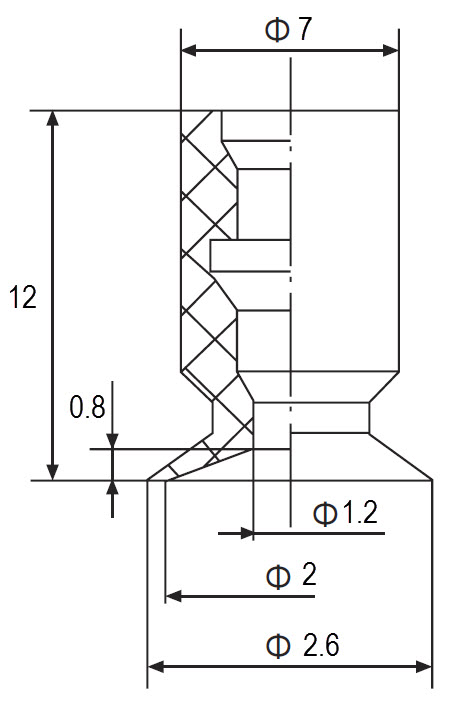

Dimensional drawing for Item: V-ZPT02UN-M5
Click on the image to enlarge
Parts and accessories for Suction Cup: V-ZPT02UN-M5
Fitting Image for V-ZPT1-M5 |
General Specifications
Material: Aluminum
Weight: .0055(lbs)
Dimensions: M5 male
Description: M5 male fitting for V-ZP 2-8mm cups
*This fitting is included with the cup(V-ZPT02UN-M5)
|

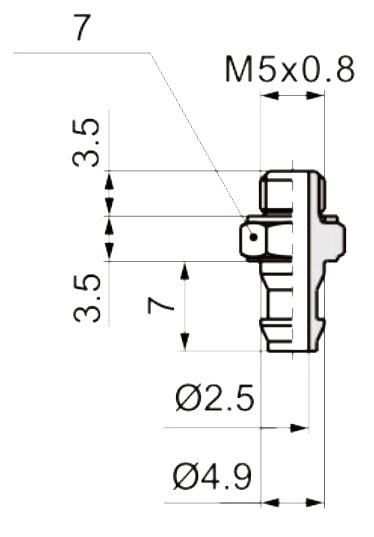

Dimensional Fitting Drawing for V-ZPT1-M5 |
|
|---|
Fitting Image for V-ZPT1-M5F |
General Specifications
Material: Aluminum
Weight: .0055(lbs)
Dimensions: M5 female
Description: M5 female fitting for V-ZP 2-8mm cups
|

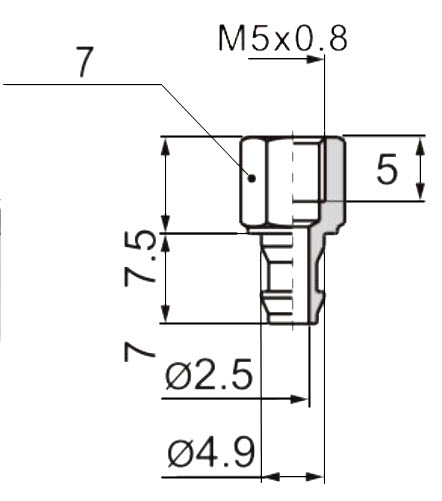

Dimensional Fitting Drawing for V-ZPT1-M5F |
|
|---|
