Quantity:
Item: V-ZPT25US-M6 - 28mm flat universal Silicone suction cup with M6 ... (Full Description below)
| |
Item#: V-ZPT25US-M6
Price: $9.03 ea.
|

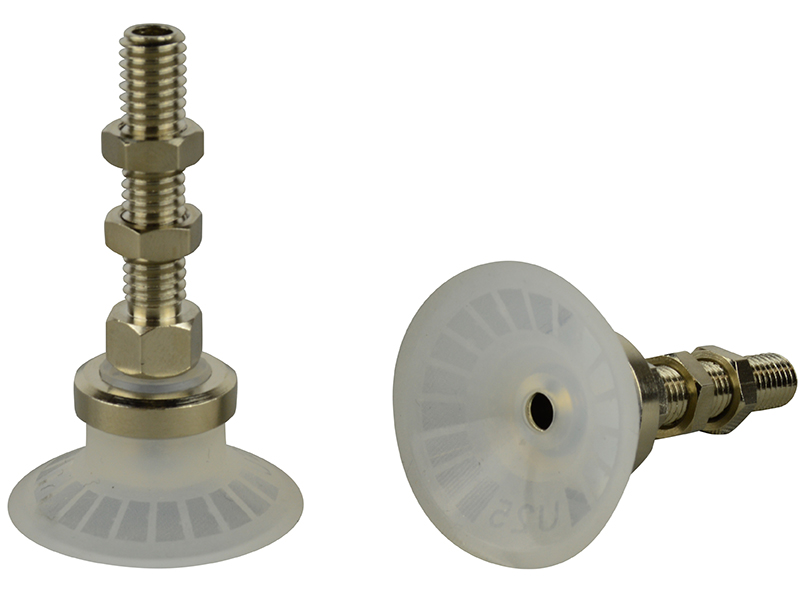

28mm flat universal Silicone suction cup with M6 male fitting
General Specifications
Style: Flat
Cleats: No
Material: Silicone
Thread Size: M6 male
Outside Diameter: 28.0mm
Weight(lbs): .0260
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item V-ZPT25US-M6
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.14 lbs. |
0.57 lbs. |
| 18"Hg |
3.43 lbs. |
1.71 lbs. |
| 27"Hg |
5.15 lbs. |
2.57 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: ZPT25US-A6 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: V-ZPT25US-M6
No CAD files available for this Product

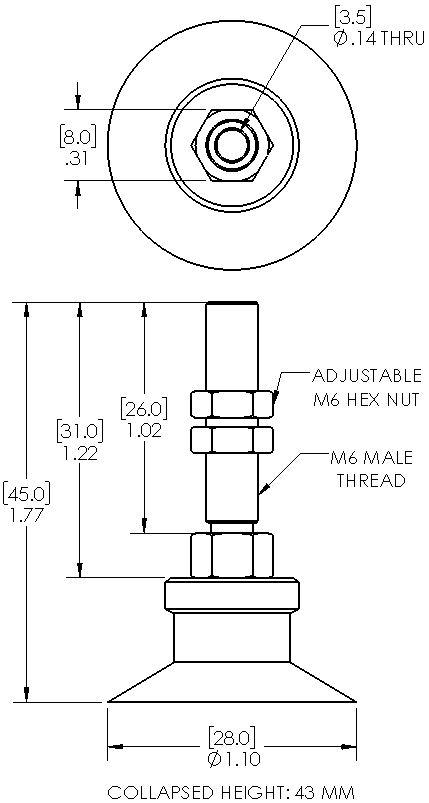

Dimensional drawing for Item: V-ZPT25US-M6
Click on the image to enlarge
Parts and accessories for Suction Cup: V-ZPT25US-M6
Fitting Image for V-ZPT3-M6 |
General Specifications
Material: Aluminum
Weight: .0165(lbs)
Dimensions: M6 male
Description: M6 male fitting for V-ZP 20-32mm cups
*This fitting is included with the cup(V-ZPT25US-M6)
|

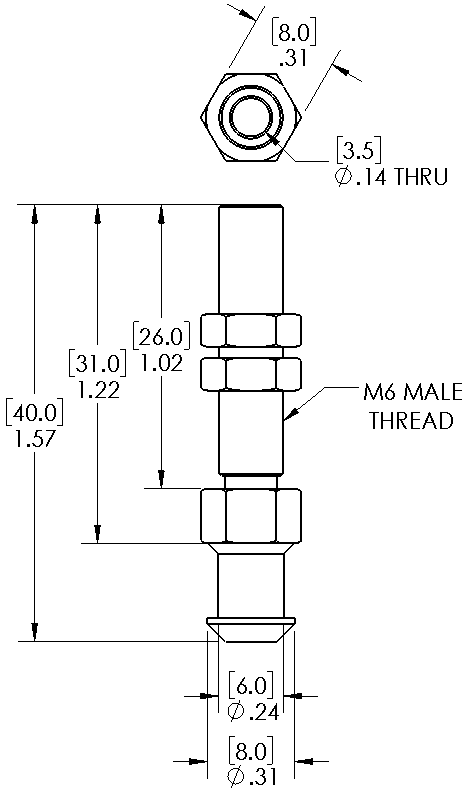

Dimensional Fitting Drawing for V-ZPT3-M6 |
|
|---|
