Quantity:
Item: 013515S - 35mm flat Silicone suction cup
| |
Item#: 013515S
Price: $6.89 ea.
|

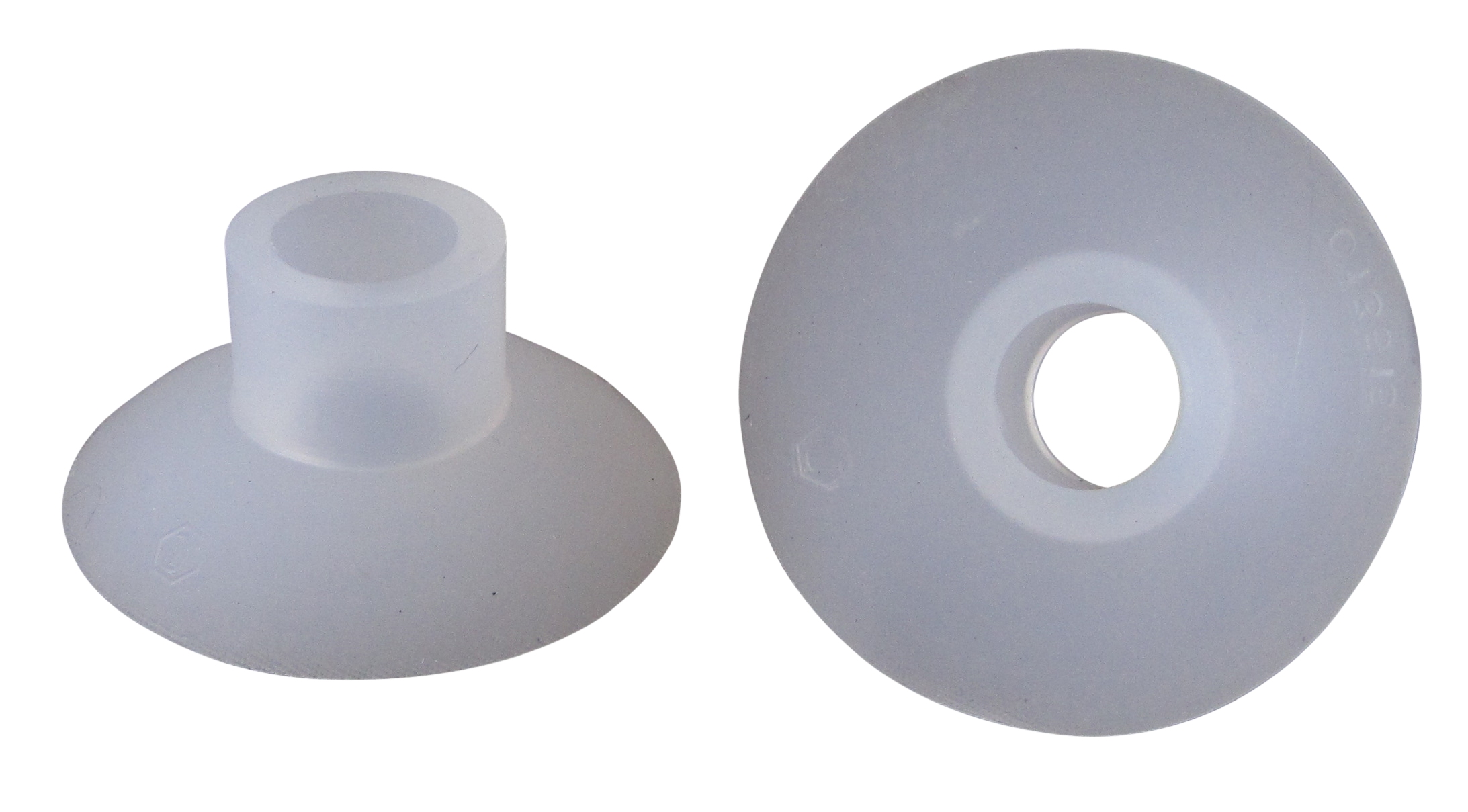

35mm flat Silicone suction cup
General Specifications
Style: Flat
Cleats: No
Material: Silicone
Thread Size: None
Outside Diameter: 35.0mm
Weight(lbs): 0.0057
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 013515S
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.78 lbs. |
0.89 lbs. |
| 18"Hg |
5.36 lbs. |
2.68 lbs. |
| 27"Hg |
8.05 lbs. |
4.02 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-58 to 572 °F (-50 to 300 °C) |
Video of Product in Action
No Videos Available for: 013515S
Related CAD files of Product
Dimensional drawing for Item: 013515S
Click on the image to enlarge
Parts and accessories for Suction Cup: 013515S
No parts or accessories related to this item were found.
