Quantity:
Item: 10F.030.004.03 - 30mm flat suction cup, natural rubber
| |
Item#: 10F.030.004.03
Price: $7.14 ea.
|

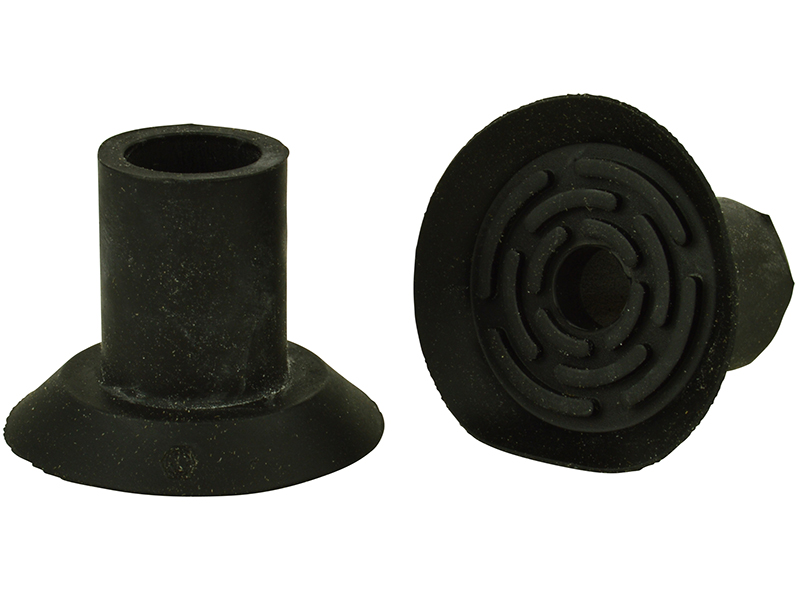

30mm flat suction cup, natural rubber
General Specifications
Style: Flat
Cleats: Yes
Material: Natural Rubber
Thread Size: None
Outside Diameter: 30.0mm
Weight(lbs): .0271
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.030.004.03
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.31 lbs. |
0.65 lbs. |
| 18"Hg |
3.94 lbs. |
1.97 lbs. |
| 27"Hg |
5.91 lbs. |
2.95 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: 013024N |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Natural Rubber |
Excellent |
Poor |
Good |
-94 to 176 °F (-70 to 80 °C) |
Video of Product in Action
No Videos Available for: 10F.030.004.03
No CAD files available for this Product

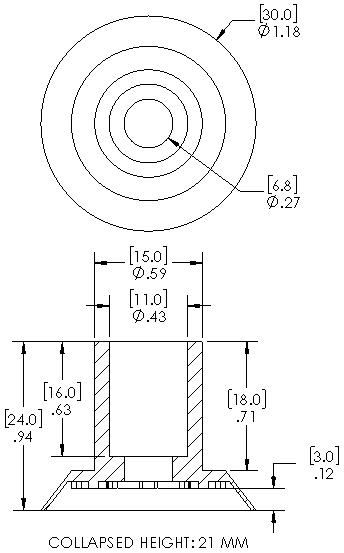

Dimensional drawing for Item: 10F.030.004.03
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.030.004.03
No parts or accessories related to this item were found.
