Quantity:
Item: 015020S - 50mm flat suction cup with cleats
| |
Item#: 015020S
Price: $10.71 ea.
|

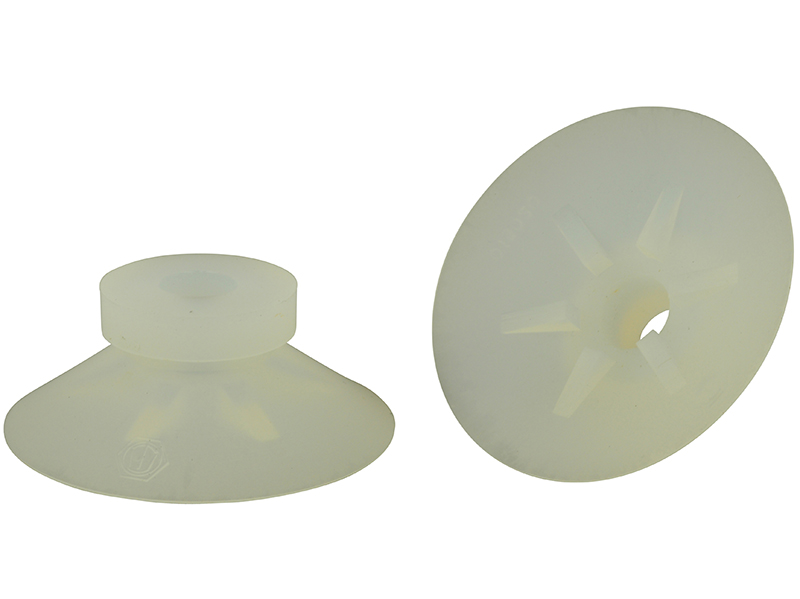

50mm flat suction cup with cleats
General Specifications
Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: None
Outside Diameter: 50.0mm
Weight(lbs): .0227
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 015020S
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
3.65 lbs. |
1.82 lbs. |
| 18"Hg |
10.95 lbs. |
5.47 lbs. |
| 27"Hg |
16.43 lbs. |
8.21 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-58 to 572 °F (-50 to 300 °C) |
Video of Product in Action
No Videos Available for: 015020S
No CAD files available for this Product

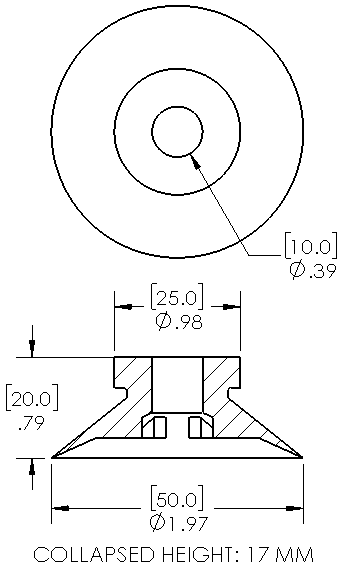

Dimensional drawing for Item: 015020S
Click on the image to enlarge
Parts and accessories for Suction Cup: 015020S
No parts or accessories related to this item were found.
