Quantity:
Item: 083060A - 30mm x 60mm concave suction cup with M8 female fi... (Full Description below)
| |
Item#: 083060A
Price: $56.39 ea.
|

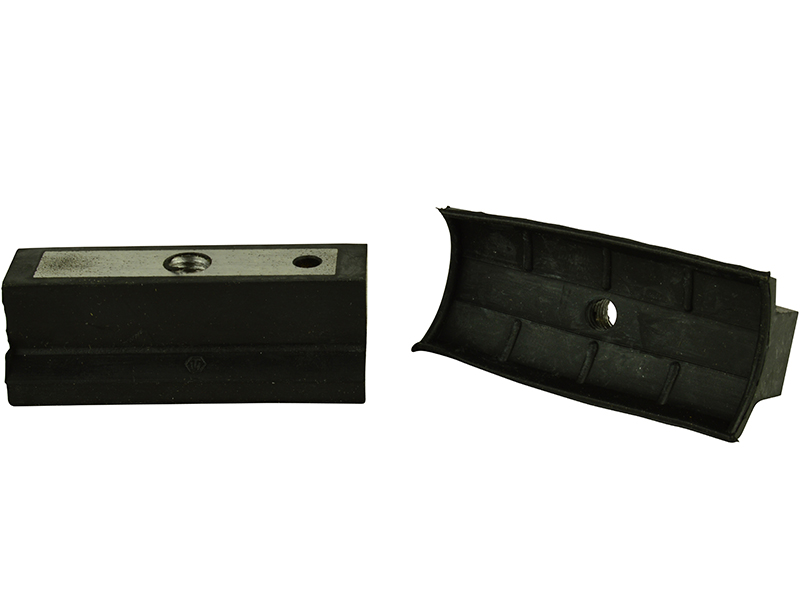

30mm x 60mm concave suction cup with M8 female fitting, NBR
General Specifications
Style: Oval
Cleats: No
Material: NBR
Thread Size: M8 male
Outside Diameter1: 60.0mm
Outside Diameter2: 30mm
Weight(lbs): .0447
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 083060A
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.75 lbs. |
0.87 lbs. |
| 18"Hg |
7.88 lbs. |
3.94 lbs. |
| 27"Hg |
11.83 lbs. |
5.91 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: 083060A
No CAD files available for this Product

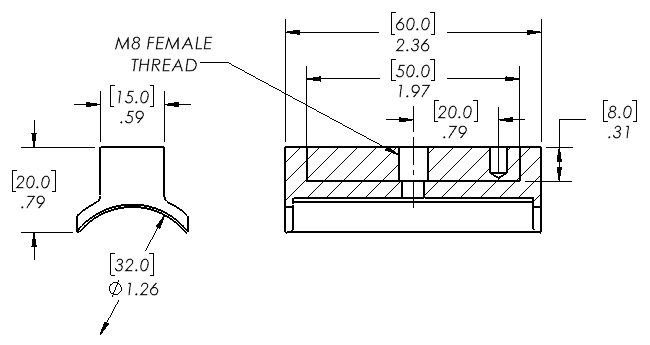

Dimensional drawing for Item: 083060A
Click on the image to enlarge
Parts and accessories for Suction Cup: 083060A
No parts or accessories related to this item were found.
