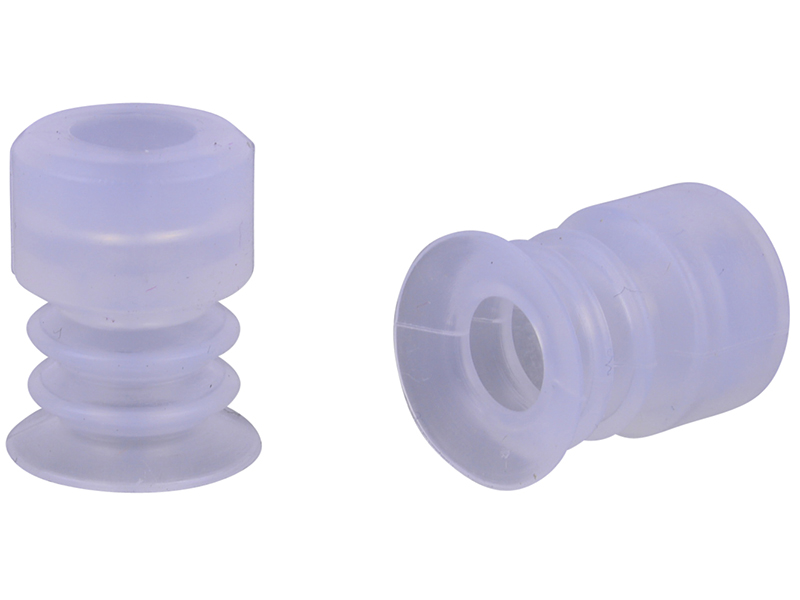

Item: 25B.015.003.02 - 15mm, 2.5 Bellows FDA Silicone suction cup. Compa... (Full Description below)
| |
Item#: 25B.015.003.02
Price: $4.20 ea.
|
15mm, 2.5 Bellows FDA Silicone suction cup. Compatible with LC12-H2-10, LC12-H2-20, LC12-H2-30
General Specifications
Style: Bellows
Cleats: No
Material: Silicone
Thread Size: None
Bellows: 2.5
Outside Diameter: 15.0mm
Weight(lbs): .0025
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 25B.015.003.02
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.32 lbs. |
0.16 lbs. |
| 18"Hg |
0.98 lbs. |
0.49 lbs. |
| 27"Hg |
1.47 lbs. |
0.73 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: 25B.015.003.02
No CAD files available for this Product

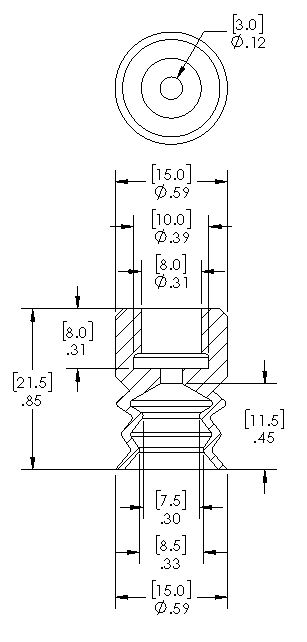

Dimensional drawing for Item: 25B.015.003.02
Click on the image to enlarge
Parts and accessories for Suction Cup: 25B.015.003.02
No parts or accessories related to this item were found.
