Quantity:
Item: 25B.024.001.02-G14F - 24mm multiple bellows FDA Silicone suction cup wi... (Full Description below)
| |
Item#: 25B.024.001.02-G14F
Price: $20.69 ea.
|

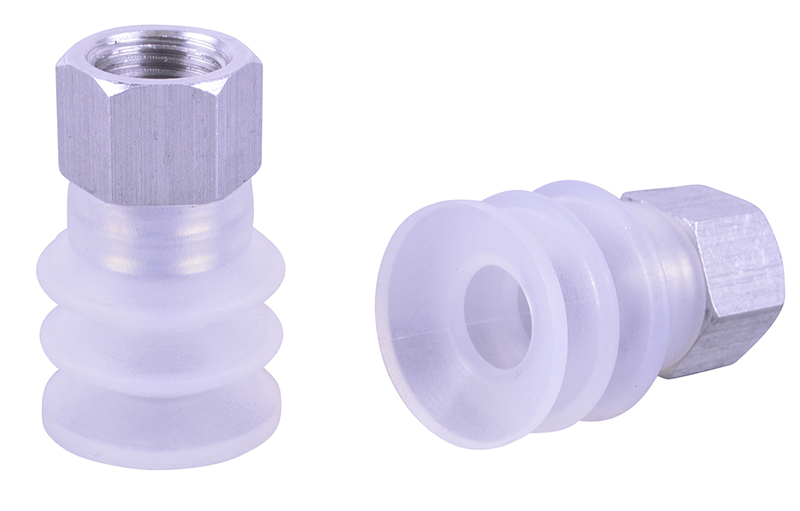

24mm multiple bellows FDA Silicone suction cup with G1/4 female fitting
General Specifications
Style: Bellows
Cleats: No
Material: Silicone
Thread Size: 1/4" female
Bellows: 2.5
Outside Diameter: 24.0mm
Weight(lbs): .0210
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 25B.024.001.02-G14F
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.84 lbs. |
0.42 lbs. |
| 18"Hg |
2.52 lbs. |
1.26 lbs. |
| 27"Hg |
3.78 lbs. |
1.89 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: 25B.024.001.02-G14F
No CAD files available for this Product

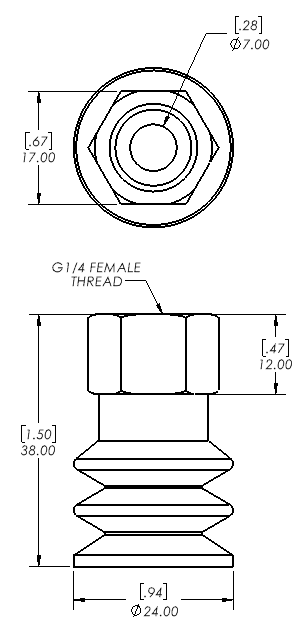

Dimensional drawing for Item: 25B.024.001.02-G14F
Click on the image to enlarge
Parts and accessories for Suction Cup: 25B.024.001.02-G14F
Fitting Image for 130.098 |
General Specifications
Material: Aluminum
Weight: .0135(lbs)
Dimensions: G1/4" female
Description: G1/4 female fitting for oval cups
*This fitting is included with the cup(25B.024.001.02-G14F)
|
Dimensional Fitting Drawing for 130.098 |
|
|---|
