Quantity:
Item: 081010S-M5 - 10mm flat Silicone suction cup with M5 male fitti... (Full Description below)
| |
Item#: 081010S-M5
Price: $4.83 ea.
|

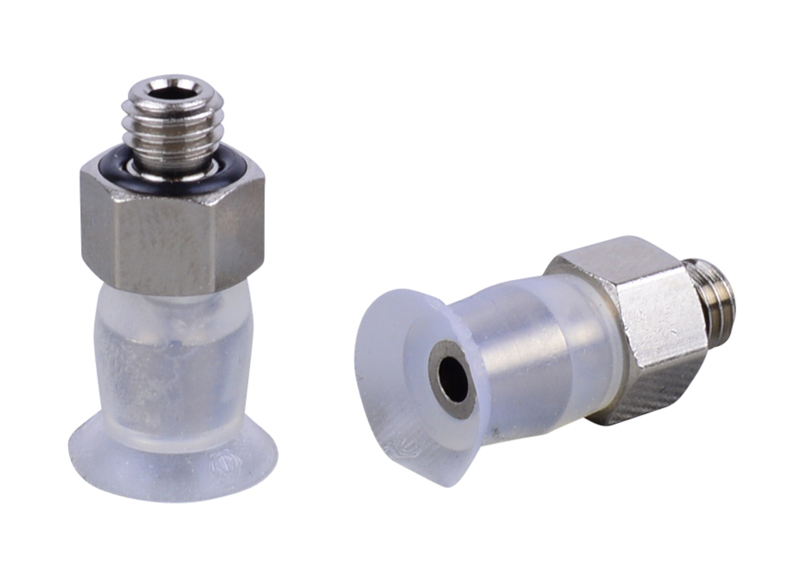

10mm flat Silicone suction cup with M5 male fitting
General Specifications
Style: Flat
Cleats: No
Material: Silicone
Thread Size: M5 male
Outside Diameter: 10.0mm
Weight(lbs): .0017
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 081010S-M5
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.14 lbs. |
0.07 lbs. |
| 18"Hg |
0.43 lbs. |
0.21 lbs. |
| 27"Hg |
0.65 lbs. |
0.32 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-58 to 572 °F (-50 to 300 °C) |
Video of Product in Action
No Videos Available for: 081010S-M5
No CAD files available for this Product

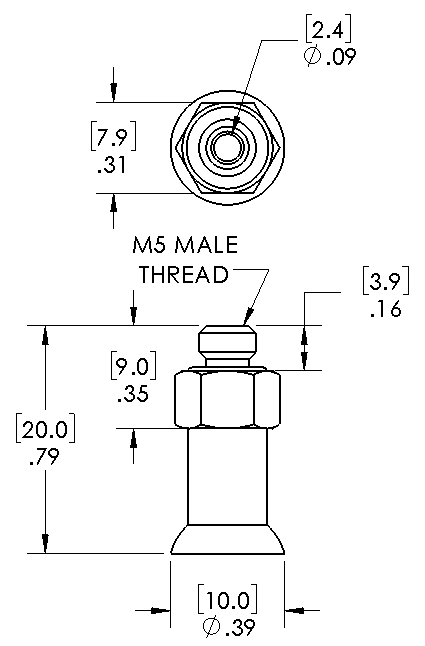

Dimensional drawing for Item: 081010S-M5
Click on the image to enlarge
Parts and accessories for Suction Cup: 081010S-M5
Fitting Image for 130.134-2 |
General Specifications
Material: Nickel Plated Brass
Weight: .0015(lbs)
Dimensions: M5 male
Description: M5 male barb fitting
*This fitting is included with the cup(081010S-M5)
|
Dimensional Fitting Drawing for 130.134-2 |
|
|---|
