Quantity:
Item: 081510N-M5 - 15mm flat Natural Rubber suction cup with M5 male... (Full Description below)
| |
Item#: 081510N-M5
Price: $4.49 ea.
|
15mm flat Natural Rubber suction cup with M5 male fitting
General Specifications
Style: Flat
Cleats: No
Material: Natural Rubber
Thread Size: M5 male
Outside Diameter: 15.0mm
Weight(lbs): .0017
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 081510N-M5
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.32 lbs. |
0.16 lbs. |
| 18"Hg |
0.98 lbs. |
0.49 lbs. |
| 27"Hg |
1.47 lbs. |
0.73 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Natural Rubber |
Good |
Poor |
Poor |
-40 to 176 °F (-40 to 80 °C) |
Video of Product in Action
No Videos Available for: 081510N-M5
Related CAD files of Product

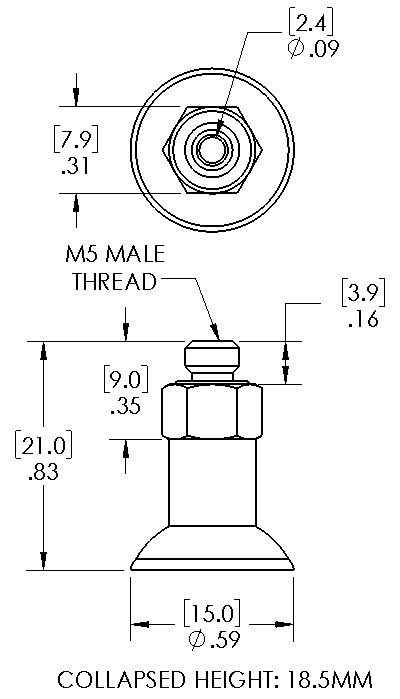

Dimensional drawing for Item: 081510N-M5
Click on the image to enlarge
Parts and accessories for Suction Cup: 081510N-M5
Fitting Image for 130.134-2 |
General Specifications
Material: Nickel Plated Brass
Weight: .0015(lbs)
Dimensions: M5 male
Description: M5 male barb fitting
*This fitting is included with the cup(081510N-M5)
|
Dimensional Fitting Drawing for 130.134-2 |
|
|---|
