Item: 10F.028.003.03 - 28mm flat natural rubber suction cup (SC-100)
| |
Item#: 10F.028.003.03
Price: $4.73 ea.
|
28mm flat natural rubber suction cup (SC-100)
General Specifications
Style: Flat
Cleats: No
Material: Natural Rubber
Thread Size: None
Outside Diameter: 28.0mm
Weight(lbs): .041
Color: Grey
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.028.003.03
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.14 lbs. |
0.57 lbs. |
| 18"Hg |
3.43 lbs. |
1.71 lbs. |
| 27"Hg |
5.15 lbs. |
2.57 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: SC-100, Haabtec |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Natural Rubber |
Good |
Poor |
Poor |
-40 to 176 °F (-40 to 80 °C) |
Video of Product in Action
No Videos Available for: 10F.028.003.03
Related CAD files of Product

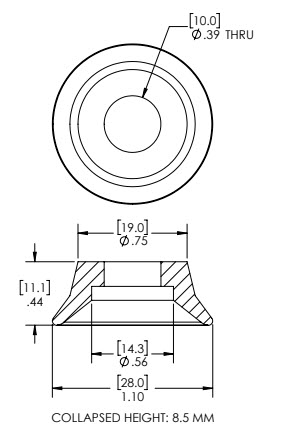

Dimensional drawing for Item: 10F.028.003.03
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.028.003.03
No parts or accessories related to this item were found.
