Quantity:
Item: 10F.050.004.02-G38M - 50 mm Flat suction cup, thin lip silicone, 40 sho... (Full Description below)
| |
Item#: 10F.050.004.02-G38M
Price: $19.47 ea.
|

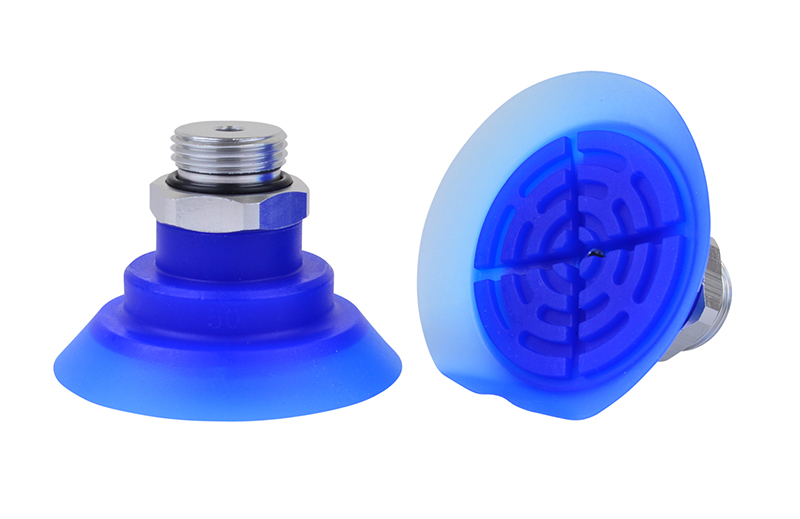

50 mm Flat suction cup, thin lip silicone, 40 shore with G 3/8 male fitting
General Specifications
Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: 3/8" male
Outside Diameter: 50.0mm
Weight(lbs): .0470
Color: Blue
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.050.004.02-G38M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
3.65 lbs. |
1.82 lbs. |
| 18"Hg |
10.95 lbs. |
5.47 lbs. |
| 27"Hg |
16.43 lbs. |
8.21 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: ZP3P-T50PTSF-AG3 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: 10F.050.004.02-G38M
Related CAD files of Product

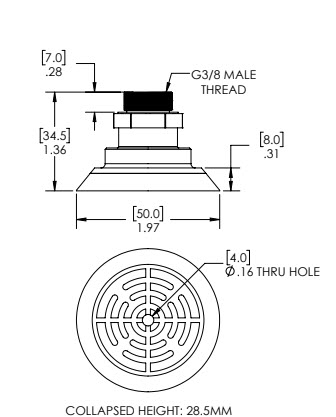

Dimensional drawing for Item: 10F.050.004.02-G38M
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.050.004.02-G38M
Fitting Image for 403.018 |
General Specifications
Material: Aluminum
Weight: .0240(lbs)
Dimensions: G 3/8" male
Description: G3/8 male fitting for 35mm and 50 mm thinlip cup
*This fitting is included with the cup(10F.050.004.02-G38M)
|

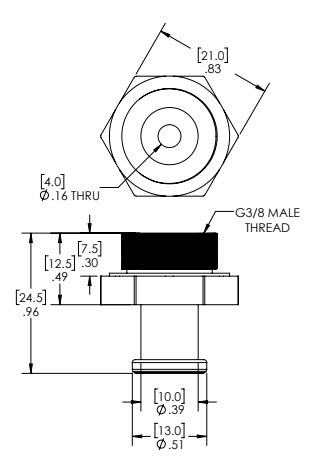

Dimensional Fitting Drawing for 403.018 |
|
|---|
