Quantity:
Item: 25B.023.100.01 - 23mm 2.5 bellows NBR suction cup (2008)
| |
Item#: 25B.023.100.01
Price: $4.16 ea.
|

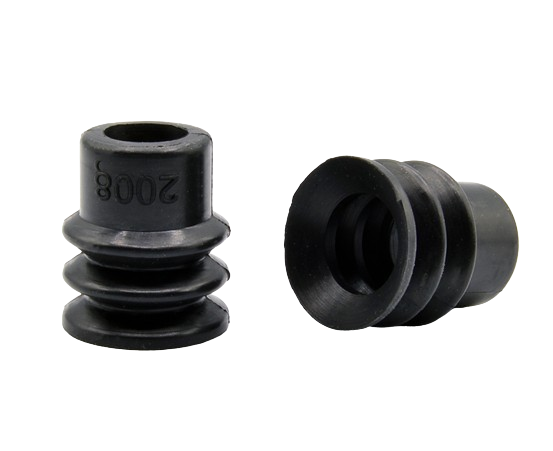

23mm 2.5 bellows NBR suction cup (2008)
General Specifications
Style: Bellows
Cleats: No
Material: NBR
Thread Size: None
Bellows: 2.5
Outside Diameter: 23.0mm
Weight(lbs): .0090
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 25B.023.100.01
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.77 lbs. |
0.38 lbs. |
| 18"Hg |
2.31 lbs. |
1.15 lbs. |
| 27"Hg |
3.47 lbs. |
1.73 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: VC-33A3 7/16 HL 7/16 Stem |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: 25B.023.100.01
Related CAD files of Product
Dimensional drawing for Item: 25B.023.100.01
Click on the image to enlarge
Parts and accessories for Suction Cup: 25B.023.100.01
No parts or accessories related to this item were found.
