Quantity:
Item: 10F.025.010.02 - 25mm flat blue FDA Silicone suction cup with clea... (Full Description below)
| |
Item#: 10F.025.010.02
Price: $3.68 ea.
|
25mm flat blue FDA Silicone suction cup with cleats (V32)
General Specifications
Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: None
Outside Diameter: 25.0mm
Weight(lbs): .0080
Color: Blue
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.025.010.02
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.91 lbs. |
0.45 lbs. |
| 18"Hg |
2.73 lbs. |
1.36 lbs. |
| 27"Hg |
4.10 lbs. |
2.05 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: V32 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: 10F.025.010.02
Related CAD files of Product

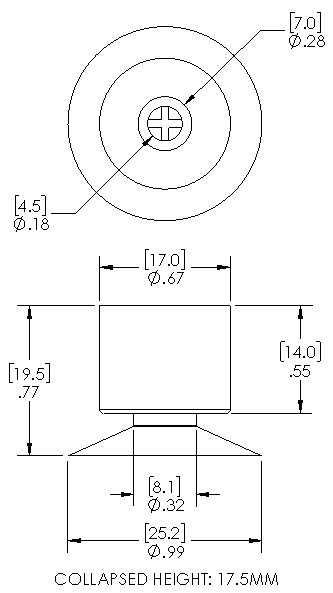

Dimensional drawing for Item: 10F.025.010.02
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.025.010.02
No parts or accessories related to this item were found.
