Item: 10F.020.006.02 - 20mm flat red silicone suction cup with cleats
|
Item#: 10F.020.006.02 Price: $7.30 ea.
|
20mm flat red silicone suction cup with cleats
General Specifications
Style: Flat Cleats: Yes Material: Silicone Thread Size: None Outside Diameter: 20.0mm Weight(lbs): .0035 Color: Red Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.020.006.02 ![](https://www.websalescrm.com/images/Vacmotion/Small_10F02000602.jpg)
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
0.58 lbs. |
0.29 lbs. |
18"Hg |
1.75 lbs. |
0.87 lbs. |
27"Hg |
2.62 lbs. |
1.31 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
![Vacmotion Product Video](https://www.vacmotion.com/images/VacmotionVideoNone2.png)
No Videos Available for: 10F.020.006.02
Related CAD files of Product

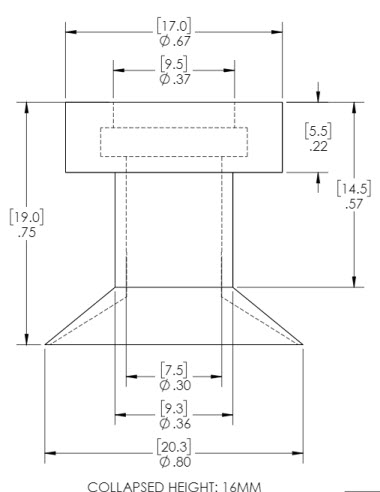

Dimensional drawing for Item: 10F.020.006.02 ![](https://www.websalescrm.com/images/Vacmotion/10F02000602D.jpg)
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.020.006.02
No parts or accessories related to this item were found.
