Quantity:
Item: 10F.018.101.02 - 18mm flat FDA Silicone suction cup (1027)
| |
Item#: 10F.018.101.02
Price: $3.38 ea.
|

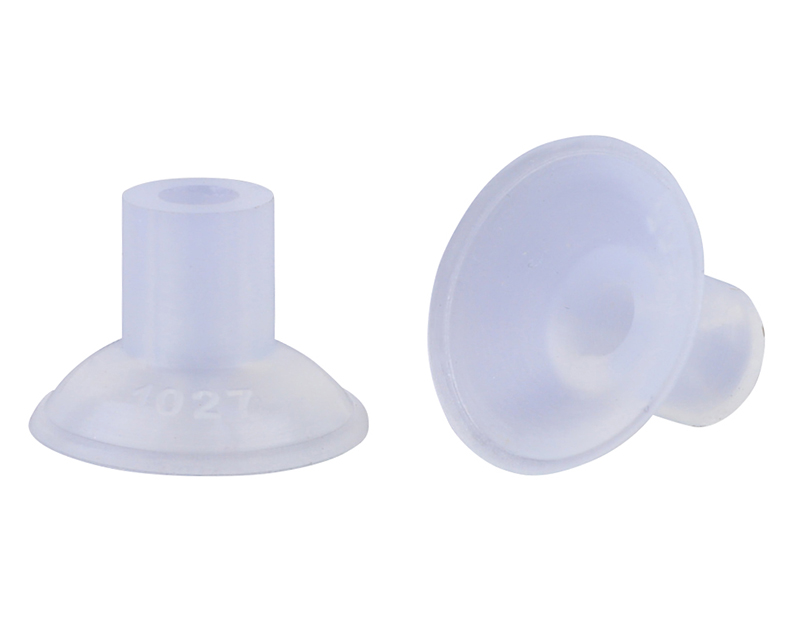

18mm flat FDA Silicone suction cup (1027)
General Specifications
Style: Flat
Cleats: No
Material: NBR
Thread Size: None
Outside Diameter: 18.0mm
Weight(lbs): .0015
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.018.101.02
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.47 lbs. |
0.23 lbs. |
| 18"Hg |
1.41 lbs. |
0.70 lbs. |
| 27"Hg |
2.12 lbs. |
1.06 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: VC-316D |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: 10F.018.101.02
Related CAD files of Product

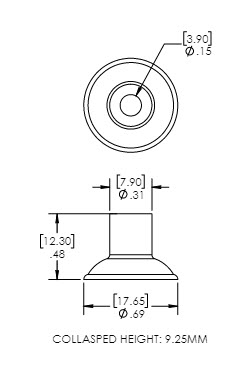

Dimensional drawing for Item: 10F.018.101.02
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.018.101.02
No parts or accessories related to this item were found.
