Quantity:
Item: 35B.084.100.01 - 3.31 in. (84.07mm) 3.5 bellows suction cup, 1/4 N... (Full Description below)
| |
Item#: 35B.084.100.01
Price: $14.62 ea.
|

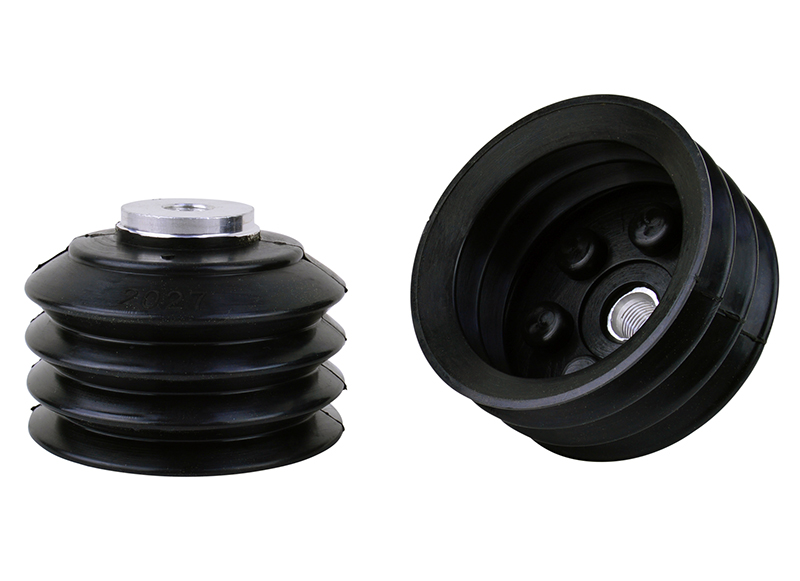

3.31 in. (84.07mm) 3.5 bellows suction cup, 1/4 NPT female, NBR (2027)
General Specifications
Style: Bellows
Cleats: No
Material: NBR
Thread Size: 1/4" female
Bellows: 3.5
Outside Diameter: 84.1mm
Weight(lbs): .3080
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 35B.084.100.01
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
10.33 lbs. |
5.16 lbs. |
| 18"Hg |
30.99 lbs. |
15.49 lbs. |
| 27"Hg |
46.49 lbs. |
23.24 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: VC-130D3 1/4 NPT |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: 35B.084.100.01
Related CAD files of Product
Dimensional drawing for Item: 35B.084.100.01
Click on the image to enlarge
Parts and accessories for Suction Cup: 35B.084.100.01
No parts or accessories related to this item were found.
