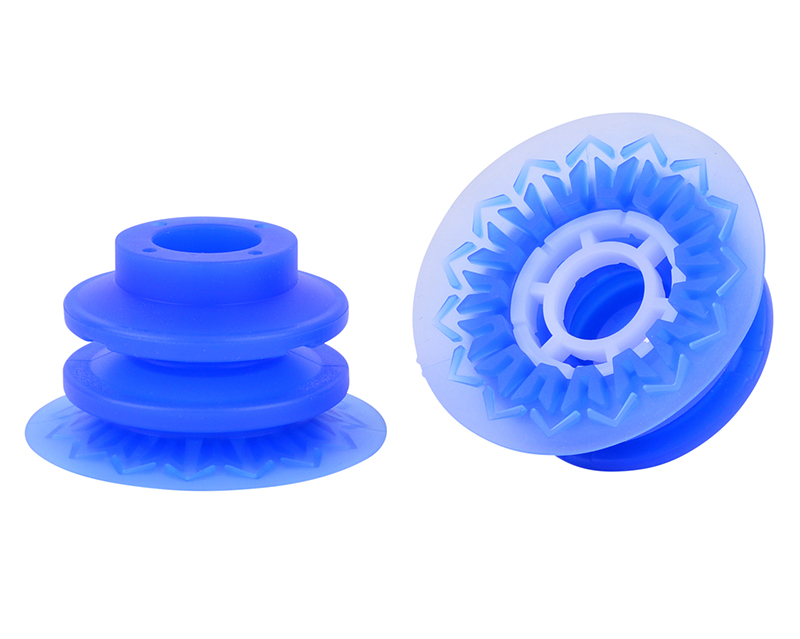

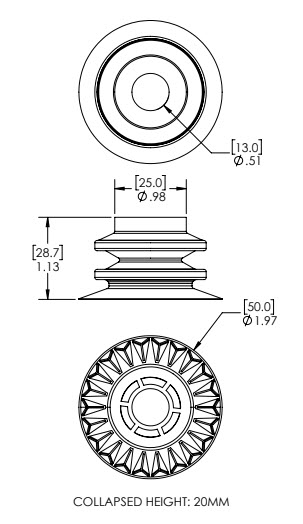

Home > Products > Suction Cups > 25B.050.004.02-W Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 25B.050.004.02-W - 50mm 2.5 bellows Silicone suction cup with bag st... (Full Description below) Item#: 25B.050.004.02-W Price: $26.87 ea. 50mm 2.5 bellows Silicone suction cup with bag stabilizer General Specifications Style: Bellows Cleats: Yes Material: Silicone Thread Size: None Bellows: 2.5 Outside Diameter: 50.0mm Weight(lbs): .0290 Color: Blue Lifting Capacity: See Chart                                                                                                                                  [X] Close Lifting Capacity for Item 25B.050.004.02-W    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 3.65 lbs. 1.82 lbs. 18"Hg 10.95 lbs. 5.47 lbs. 27"Hg 16.43 lbs. 8.21 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO   Recommended replacement for: ZP3P-50JT2SF-W, ZP3P-50JT2SF-W Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos Available for: 25B.050.004.02-W Related CAD files of Product Dimensional drawing for Item: 25B.050.004.02-W                                Click on the image to enlarge Parts and accessories for Suction Cup: 25B.050.004.02-W                                Fitting Image for 401.044 Item#: 401.044 compatible with cup #25B.050.004.02-W General Specifications Material: Aluminum Weight: .0305(lbs) Dimensions: G1/8" male Price: $9.45 each Description: G1/8 male fitting for 32-50mm blue bag cups Add to Cart Dimensional Fitting Drawing for 401.044 Fitting Image for 402.029 Item#: 402.029 compatible with cup #25B.050.004.02-W General Specifications Material: Aluminum Weight: .0300(lbs) Dimensions: G1/4"male Price: $9.45 each Description: G1/4 male fitting for 32-50mm blue bag cups Add to Cart Dimensional Fitting Drawing for 402.029 Fitting Image for 403.020 Item#: 403.020 compatible with cup #25B.050.004.02-W General Specifications Material: Aluminum Weight: .0260(lbs) Dimensions: G3/8" male Price: $6.00 each Description: G3/8 male fitting for 32-50mm blue bag cups Add to Cart Dimensional Fitting Drawing for 403.020

---
