Quantity:
Item: 10F.026.004.02-G14M - 26mm flat FDA Silicone suction cup with cleats wi... (Full Description below)
| |
Item#: 10F.026.004.02-G14M
Price: $8.82 ea.
|

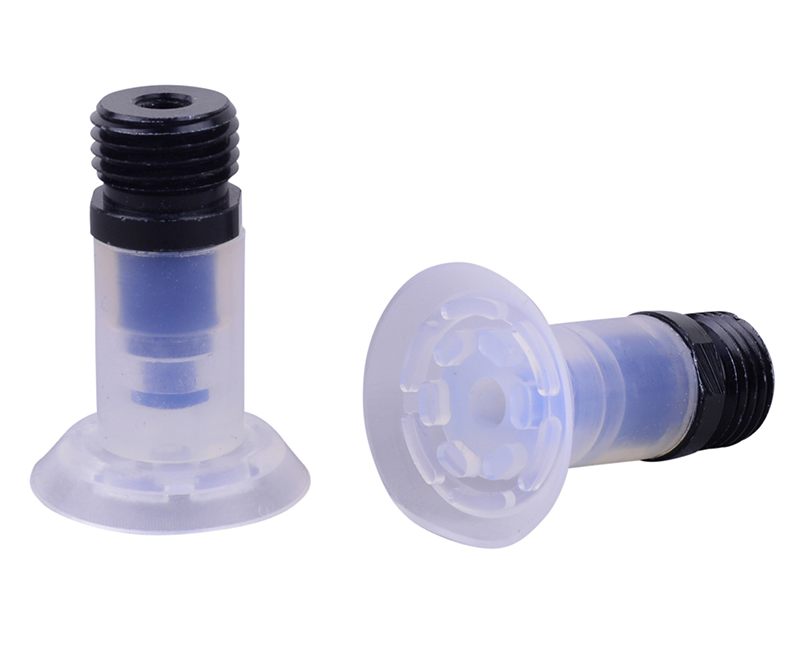

26mm flat FDA Silicone suction cup with cleats with G1/4 male
General Specifications
Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: 1/4" male
Outside Diameter: 26.0mm
Weight(lbs): .0165
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.026.004.02-G14M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.98 lbs. |
0.49 lbs. |
| 18"Hg |
2.96 lbs. |
1.48 lbs. |
| 27"Hg |
4.44 lbs. |
2.22 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: 99.14.238, F26 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: 10F.026.004.02-G14M
Related CAD files of Product

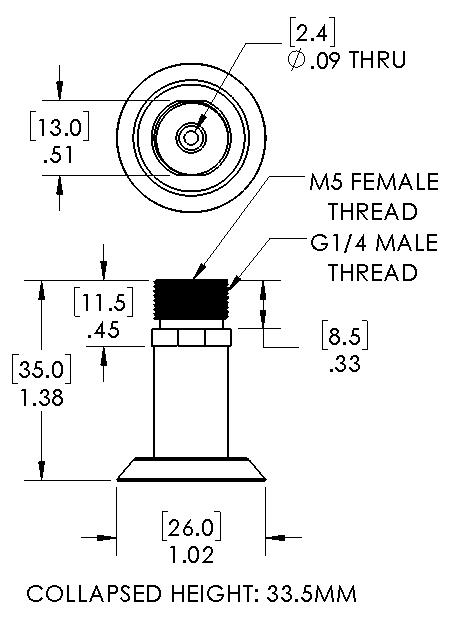

Dimensional drawing for Item: 10F.026.004.02-G14M
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.026.004.02-G14M
Fitting Image for 402.027 |
General Specifications
Material: Aluminum
Weight: (lbs)
Dimensions: G1/4" male
Description: G1/4 male fitting for 10F.026.004/10F.022.002/10F.033.001
*This fitting is included with the cup(10F.026.004.02-G14M)
|
Dimensional Fitting Drawing for 402.027 |
|
|---|
