Quantity:
Item: 10F.033.001.02-G14M - 33mm flat FDA Silicone suction cup with cleats an... (Full Description below)
| |
Item#: 10F.033.001.02-G14M
Price: $9.35 ea.
|

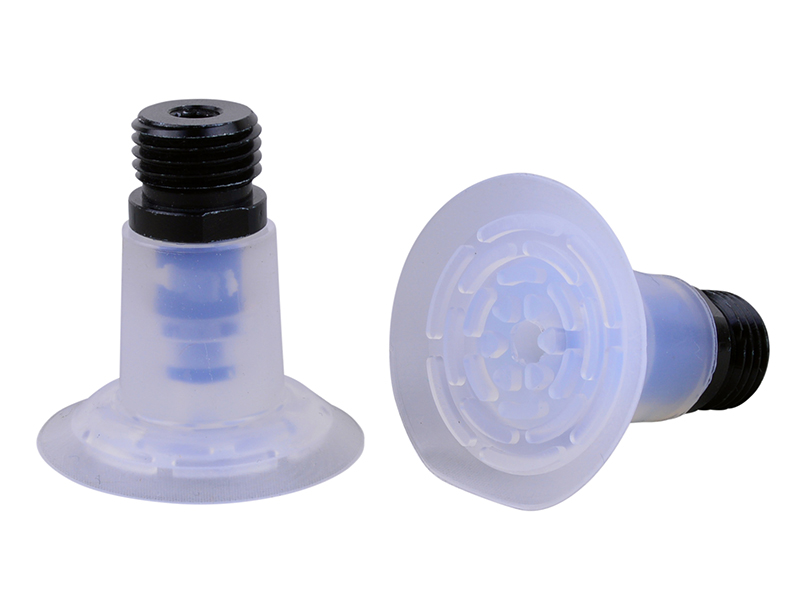

33mm flat FDA Silicone suction cup with cleats and G1/4 male fitting
General Specifications
Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: 1/4" male
Outside Diameter: 33.0mm
Weight(lbs): .0215
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.033.001.02-G14M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.59 lbs. |
0.79 lbs. |
| 18"Hg |
4.77 lbs. |
2.38 lbs. |
| 27"Hg |
7.15 lbs. |
3.57 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: 9914237, f33 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: 10F.033.001.02-G14M
Related CAD files of Product

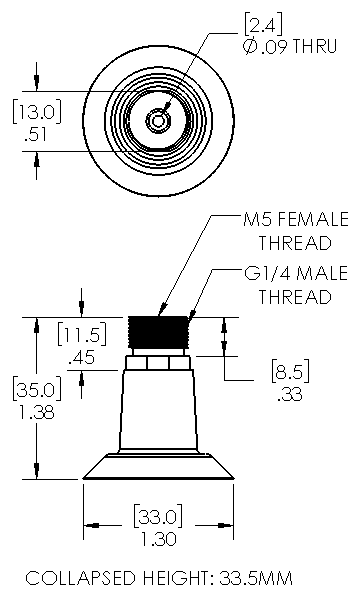

Dimensional drawing for Item: 10F.033.001.02-G14M
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.033.001.02-G14M
Fitting Image for 402.027 |
General Specifications
Material: Aluminum
Weight: (lbs)
Dimensions: G1/4" male
Description: G1/4 male fitting for 10F.026.004/10F.022.002/10F.033.001
*This fitting is included with the cup(10F.033.001.02-G14M)
|
Dimensional Fitting Drawing for 402.027 |
|
|---|
