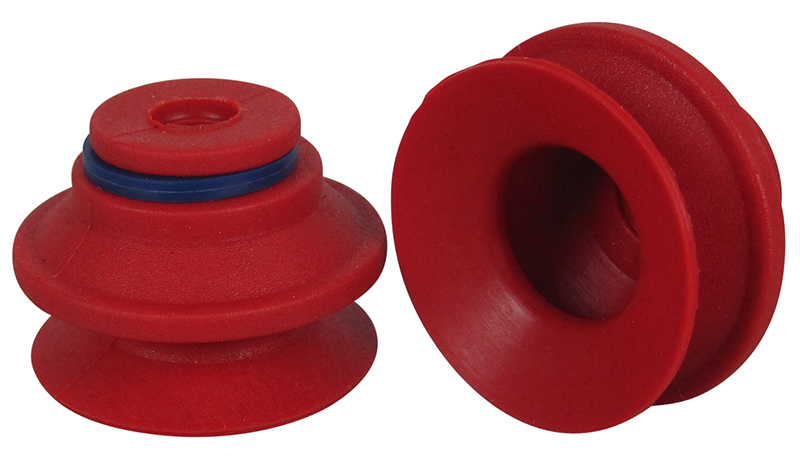

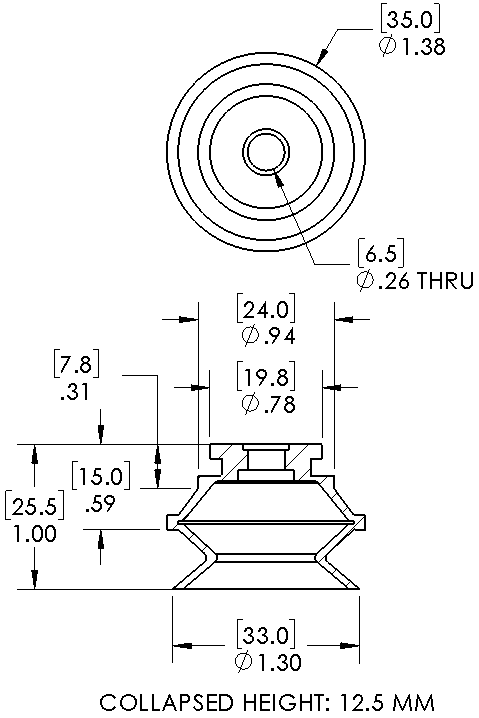

Home > Products > Suction Cups > PSB30-2-SIR Product DetailsDimensional DrawingParts & Accessories Quantity: Item: PSB30-2-SIR - 34mm single bellows Silicone suction cup Item#: PSB30-2-SIR Price: $12.81 ea. 34mm single bellows Silicone suction cup General Specifications Style: Bellows Cleats: No Material: Silicone Thread Size: None Bellows: 1.5 Outside Diameter: 34.0mm Weight(lbs): 0.0119 Color: Red Lifting Capacity: See Chart                                                                                                                                  [X] Close Lifting Capacity for Item PSB30-2-SIR    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 1.68 lbs. 0.84 lbs. 18"Hg 5.06 lbs. 2.53 lbs. 27"Hg 7.59 lbs. 3.79 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO   Recommended replacement for: B30-2.20, VSAB30SI, VB30-WS, VSAB30SI, 0101104, GSV B30 2 20, 2228 , VB30-S, VFB30S-2, 210.034.175.02R, S.B302S50. XXX.00, S.B302S50. XXX.00 Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos Available for: PSB30-2-SIR No CAD files available for this Product Dimensional drawing for Item: PSB30-2-SIR                                Click on the image to enlarge Parts and accessories for Suction Cup: PSB30-2-SIR                                Fitting Image for SCF40-G18FS Item#: SCF40-G18FS compatible with cup #PSB30-2-SIR General Specifications Material: Aluminum Weight: .0130(lbs) Dimensions: G1/8" female Price: $6.90 each Description: G1/8 female fitting with screen. 40 series suction cups Add to Cart Dimensional Fitting Drawing for SCF40-G18FS Fitting Image for 25040-21 Item#: 25040-21 compatible with cup #PSB30-2-SIR General Specifications Material: Aluminum Weight: .0160(lbs) Dimensions: G1/4" female Price: $5.83 each Description: G1/4 female fitting with filter screen for P series 30-2 and 40 cups Add to Cart Dimensional Fitting Drawing for 25040-21 Fitting Image for 402.011 Item#: 402.011 compatible with cup #PSB30-2-SIR General Specifications Material: Aluminum Weight: .0160(lbs) Dimensions: G1/4" male Price: $6.30 each Description: G1/4 male fitting with filter screen for P series 30-2 and 40 cups Add to Cart Dimensional Fitting Drawing for 402.011 Fitting Image for 130.251 Item#: 130.251 compatible with cup #PSB30-2-SIR General Specifications Material: Aluminum Weight: .0085(lbs) Dimensions: G1/8" female Price: $3.97 each Description: 1-piece fitting for P series 40 cups, G1/8 female Add to Cart Dimensional Fitting Drawing for 130.251 Fitting Image for 401.001 Item#: 401.001 compatible with cup #PSB30-2-SIR General Specifications Material: Aluminum Weight: .010(lbs) Dimensions: G1/8" male Price: $3.15 each Description: G1/8 Male flange fitting with O-ring Add to Cart Dimensional Fitting Drawing for 401.001 Fitting Image for 402.012 Item#: 402.012 compatible with cup #PSB30-2-SIR General Specifications Material: Aluminum Weight: .0180(lbs) Dimensions: 1/4" male NPT Price: $5.52 each Description: 1/4 male NPT fitting with filter screen for P series 30-2 and 40 cups Add to Cart Dimensional Fitting Drawing for 402.012

---
