Quantity:
Item: MB10-SIT-5M - 9mm 2.5 bellows FDA Silicone suction cup with M5 ... (Full Description below)
| |
Item#: MB10-SIT-5M
Price: $5.78 ea.
|

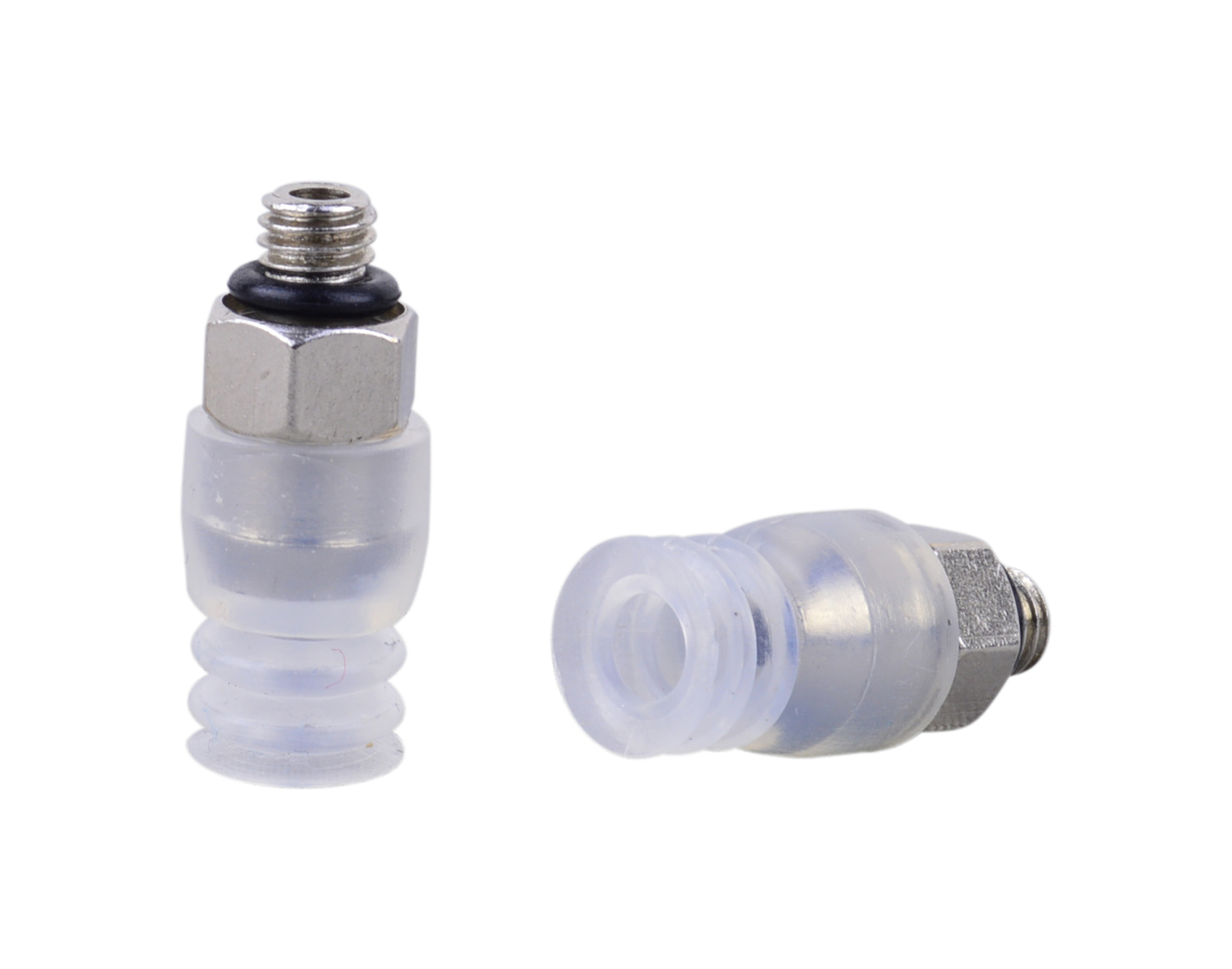

9mm 2.5 bellows FDA Silicone suction cup with M5 male fitting
General Specifications
Style: Bellows
Cleats: No
Material: Silicone
Thread Size: M5 male
Bellows: 2.5
Outside Diameter: 9.0mm
Weight(lbs): 0.0033
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item MB10-SIT-5M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.11 lbs. |
0.05 lbs. |
| 18"Hg |
0.35 lbs. |
0.17 lbs. |
| 27"Hg |
0.53 lbs. |
0.26 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: B2.5-9-SIT-5M, FSG 9 SI-55 M5-AG, 10.01.06.00037 , PCTM-10-SI-M5 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: MB10-SIT-5M
No CAD files available for this Product

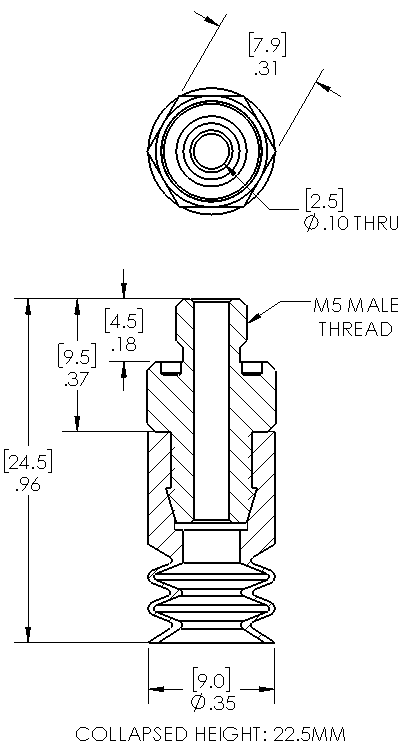

Dimensional drawing for Item: MB10-SIT-5M
Click on the image to enlarge
Parts and accessories for Suction Cup: MB10-SIT-5M
Fitting Image for 130.013C |
General Specifications
Material: Aluminum
Weight: .0080(lbs)
Dimensions: M5 male
Description: M5 male barb suction cup fitting
*This fitting is included with the cup(MB10-SIT-5M)
|
Dimensional Fitting Drawing for 130.013C |
|
|---|
