Quantity:
Item: SB16-SIT-18M - 16mm single bellows FDA Silicone suction cup with... (Full Description below)
| |
Item#: SB16-SIT-18M
Price: $6.67 ea.
|

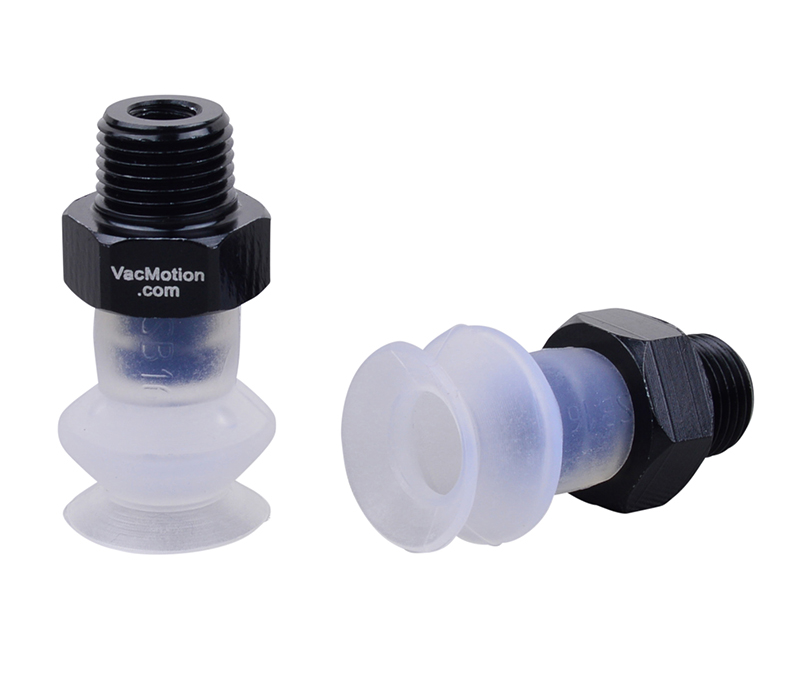

16mm single bellows FDA Silicone suction cup with 1/8 NPT male fitting
General Specifications
Style: Bellows
Cleats: No
Material: Silicone
Thread Size: 1/8" male
Bellows: 1.5
Outside Diameter: 16.0mm
Weight(lbs): 0.0111
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item SB16-SIT-18M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.37 lbs. |
0.18 lbs. |
| 18"Hg |
1.12 lbs. |
0.56 lbs. |
| 27"Hg |
1.68 lbs. |
0.84 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: B1.5-16-SIT-18M, 3766A232 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: SB16-SIT-18M
No CAD files available for this Product

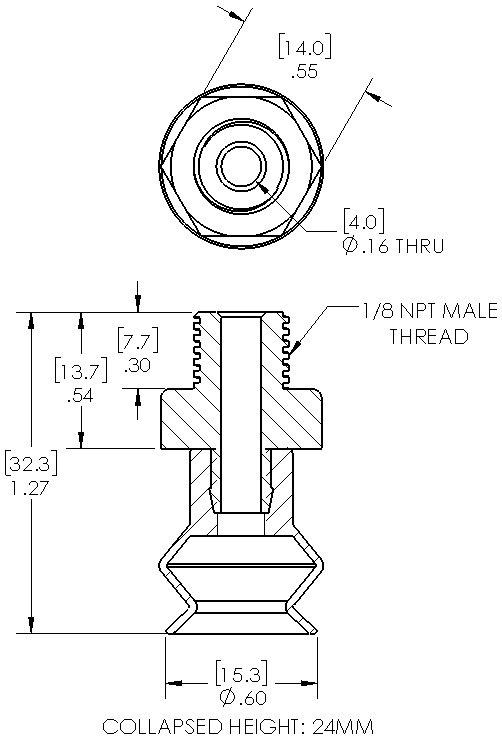

Dimensional drawing for Item: SB16-SIT-18M
Click on the image to enlarge
Parts and accessories for Suction Cup: SB16-SIT-18M
Fitting Image for VB18M |
General Specifications
Material: Aluminum
Weight: .0080(lbs)
Dimensions: 1/8" NPT male
Description: 1/8 male NPT barb fitting
*This fitting is included with the cup(SB16-SIT-18M)
|
Dimensional Fitting Drawing for VB18M |
|
|---|
