Quantity:
Item: PF25-SIR-G18MS - 28mm flat Silicone suction cup with G1/8 male fit... (Full Description below)
| |
Item#: PF25-SIR-G18MS
Price: $9.54 ea.
|

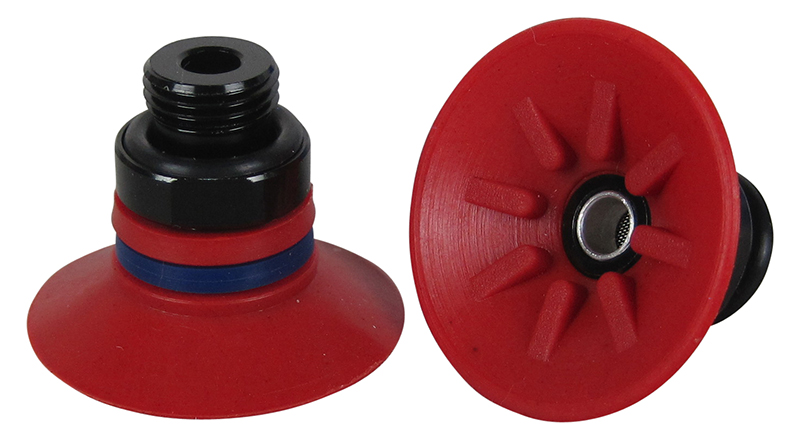

28mm flat Silicone suction cup with G1/8 male fitting with screen
General Specifications
Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: 1/8" male
Outside Diameter: 28.0mm
Weight(lbs): 0.0095
Color: Red
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PF25-SIR-G18MS
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.14 lbs. |
0.57 lbs. |
| 18"Hg |
3.43 lbs. |
1.71 lbs. |
| 27"Hg |
5.15 lbs. |
2.57 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: F25.20.02AB, F25.20.02AC, 0101304 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: PF25-SIR-G18MS
No CAD files available for this Product
Dimensional drawing for Item: PF25-SIR-G18MS
Click on the image to enlarge
Parts and accessories for Suction Cup: PF25-SIR-G18MS
Fitting Image for 401.011 |
General Specifications
Material: Aluminum
Weight: .0055(lbs)
Dimensions: G1/8" male
Description: G1/8 male fitting with screen for P series 20-30
*This fitting is included with the cup(PF25-SIR-G18MS)
|
Dimensional Fitting Drawing for 401.011 |
|
|---|
