Quantity:
Item: PMB50-NBR-G38MS - 50mm 4.5 bellows NBR suction cup with G3/8 male f... (Full Description below)
| |
Item#: PMB50-NBR-G38MS
Price: $22.71 ea.
|

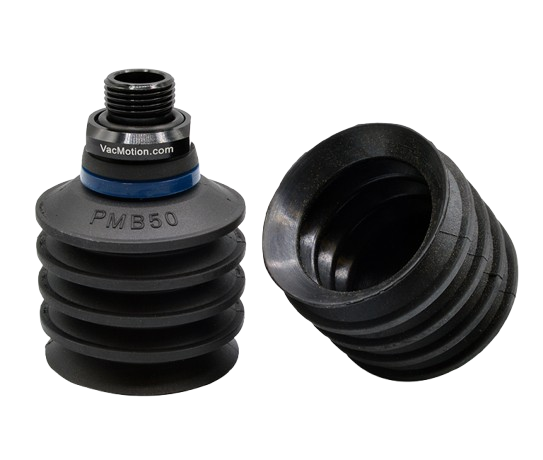

50mm 4.5 bellows NBR suction cup with G3/8 male fitting with screen
General Specifications
Style: Bellows
Cleats: No
Material: NBR
Thread Size: 3/8" male
Bellows: 4.5
Outside Diameter: 50.0mm
Weight(lbs): 0.08
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PMB50-NBR-G38MS
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
3.65 lbs. |
1.82 lbs. |
| 18"Hg |
10.95 lbs. |
5.47 lbs. |
| 27"Hg |
16.43 lbs. |
8.21 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: BL50-2.10.05AD, 0101698, BL50-2.10.05AD |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: PMB50-NBR-G38MS
No CAD files available for this Product

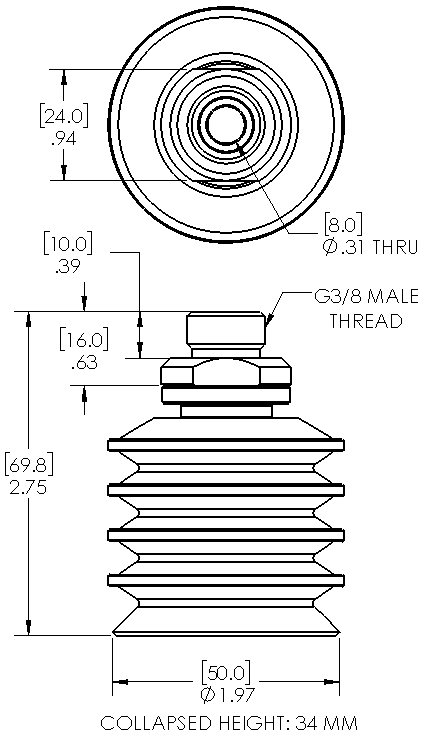

Dimensional drawing for Item: PMB50-NBR-G38MS
Click on the image to enlarge
Parts and accessories for Suction Cup: PMB50-NBR-G38MS
Fitting Image for 403.011 |
General Specifications
Material: Nickel Plated Brass
Weight: .0280(lbs)
Dimensions: G 3/8" male
Description: G 3/8 male fitting with filter screen for P series 50 cups
*This fitting is included with the cup(PMB50-NBR-G38MS)
|
Dimensional Fitting Drawing for 403.011 |
|
|---|
