Quantity:
Item: 10F.040.002.02 - 40mm flat FDA Silicone suction cup with cleats
| |
Item#: 10F.040.002.02
Price: $11.91 ea.
|

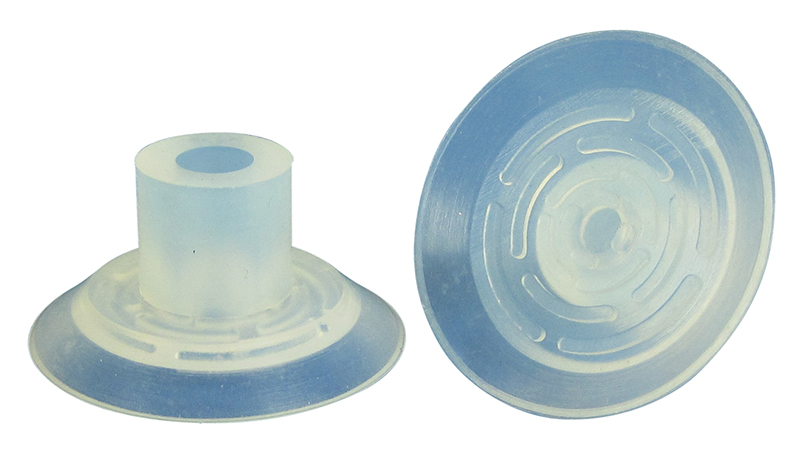

40mm flat FDA Silicone suction cup with cleats
General Specifications
Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: None
Outside Diameter: 40.0mm
Weight(lbs): 0.0105
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10F.040.002.02
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
2.33 lbs. |
1.16 lbs. |
| 18"Hg |
7.01 lbs. |
3.50 lbs. |
| 27"Hg |
10.51 lbs. |
5.25 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: SGP 40 SI-50 N035, 10.01.01.12772 , 104.040.018.2/28, 10.040.101.02 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
Click Video for Product: 10F.040.002.02
Related CAD files of Product

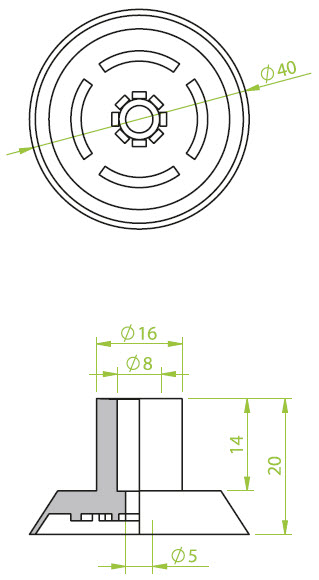

Dimensional drawing for Item: 10F.040.002.02
Click on the image to enlarge
Parts and accessories for Suction Cup: 10F.040.002.02
No parts or accessories related to this item were found.
