Quantity:
Item: 220.048.095.02 - 48mm 2.5 bellows FDA Silicone suction cup
| |
Item#: 220.048.095.02
Price: $24.70 ea.
|
48mm 2.5 bellows FDA Silicone suction cup
General Specifications
Style: Bellows
Cleats: No
Material: Silicone
Thread Size: None
Bellows: 2.5
Outside Diameter: 48.0mm
Weight(lbs): 0.072
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 220.048.095.02
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
3.36 lbs. |
1.68 lbs. |
| 18"Hg |
10.09 lbs. |
5.04 lbs. |
| 27"Hg |
15.14 lbs. |
7.57 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: 25.048.056.2, BSC50FL, S-SUC-BSC-EUR-15665 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: 220.048.095.02
No CAD files available for this Product

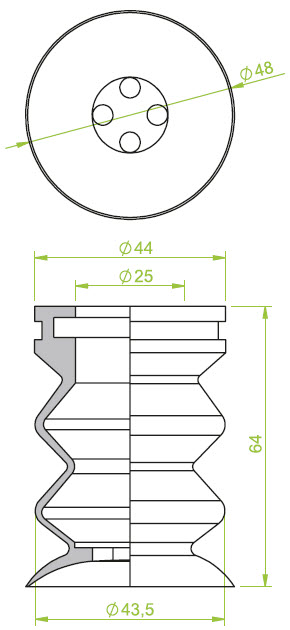

Dimensional drawing for Item: 220.048.095.02
Click on the image to enlarge
Parts and accessories for Suction Cup: 220.048.095.02
No parts or accessories related to this item were found.
