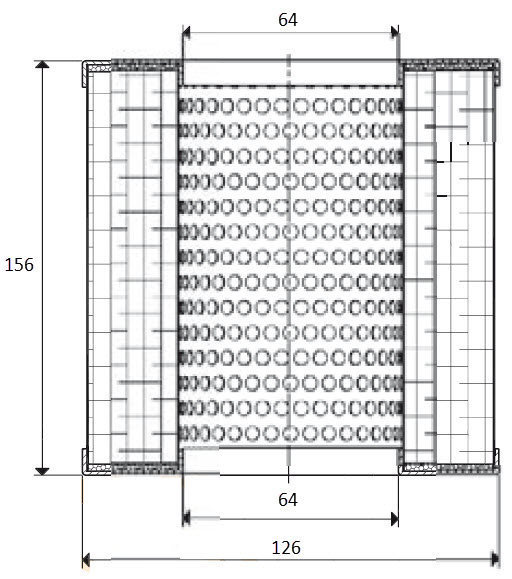

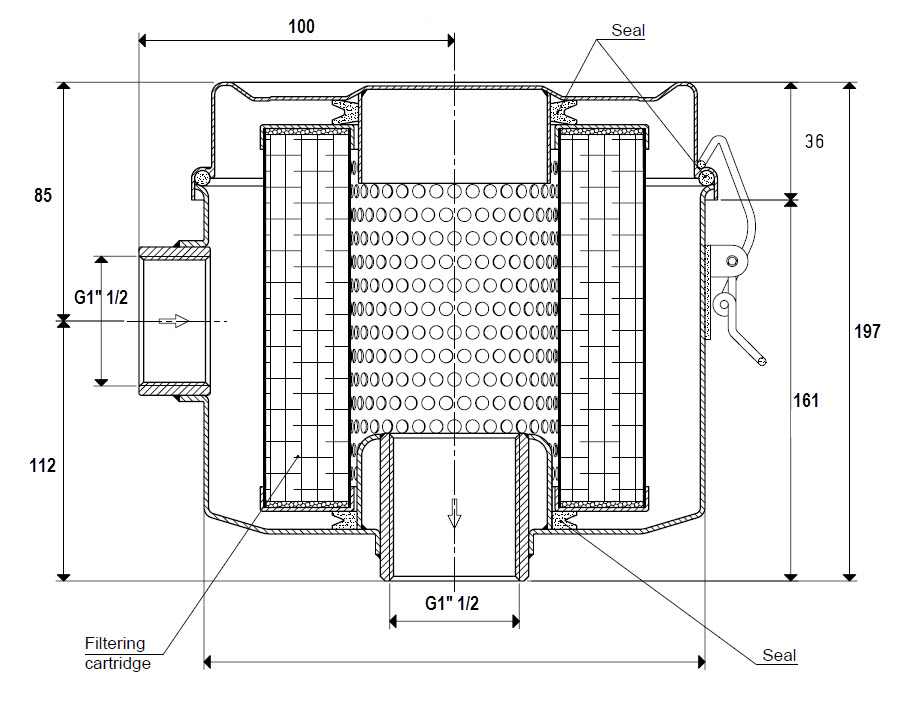

Home > Products > Vacuum Filters > FC 50 Product DetailsDimensional DrawingParts & Accessories Quantity: Item: FC 50 - Metal housing vacuum filter G1-1/2 thread with 5-... (Full Description below) Item#: FC 50 Price: $385.27 ea. Metal housing vacuum filter G1-1/2 thread with 5-7 micron pleated paper cartridge General Specifications Filter Type: Metal housing Thread Size: G1-1/2" female Filter Area In2: N/A Max Flow SCFM: 117.7 Weight(lbs): 4.65 Additional Information No additional information CAD files for this Product N/A Dimensional drawing for Item: FC 50                                Click on the image to enlarge Item#: 00 FC 24 Paper filtering cartridge for FC 50 vacuum filter. 5-7 microns Compatible with Inline Filter model: FC 50 General Specifications Product: Filter Elements Material: Pleated Paper Dimensions: Weight lbs.(g): 0.025 Price: $90.66 each Add to Cart Dimensional Drawing for 00 FC 24

---
