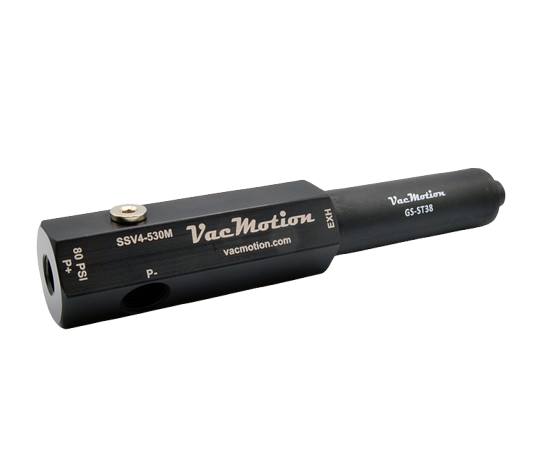

Item: SSV4-530M - Vacuum Generator, Hex Style, w/Straight Though Si... (Full Description below)
| |
Item#: SSV4-530M
Price: $185.00 ea.
|
Vacuum Generator, Hex Style, w/Straight Though Silencer, 20Hg, 5.3 SCFM, NPT
General Specifications
Vacuum Flow(SCFM): 5.3
Vacuum Port: 3/8" NPT
Supply Port: 1/4" NPT
Air Consumption: 4.80
Max Vac -inHg": 20
Weight(lbs)": .5165
 Recommended replacement for: JD-200-ST6A, NJD-200, VP80-200M-ST6A, NVP80-200M, P19-4.5-1.6M
|
|
|
|
Additional Information
No additional information available for this item
CAD files for this Product
| Supply Press (PSI) |
Max Vacuum "Hg |
0"Hg |
3"Hg |
6"Hg |
9"Hg |
12"Hg |
15"Hg |
18"Hg |
21"Hg |
24"Hg |
27"Hg |
| 80 |
20 |
5.30 |
4.90 |
4.45 |
3.90 |
3.30 |
2.25 |
1.15 |
0.00 |
|
|
| Supply Press (PSI) |
Max Vacuum "Hg |
3"Hg |
6"Hg |
9"Hg |
12"Hg |
15"Hg |
18"Hg |
21"Hg |
24"Hg |
27"Hg |
| 80 |
20.0 |
.78 |
1.85 |
3.08 |
4.71 |
7.38 |
13.46 |
22.85 |
|
|
| Supply Press (Bar) |
Air Cons L/min |
Max Vacuum "Hg |
0 Kpa |
10 Kpa |
20 Kpa |
30 Kpa |
40 Kpa |
50 Kpa |
60 Kpa |
70 Kpa |
80 Kpa |
90 Kpa |
| 5.5 |
135.9 |
20 |
150.5 |
139.2 |
126.4 |
110.8 |
93.7 |
63.9 |
32.7 |
0.00 |
|
|
| Supply Press (Bar) |
Max Vacuum "Hg |
10 Kpa |
20 Kpa |
30 Kpa |
40 Kpa |
50 Kpa |
60 Kpa |
70 Kpa |
80 Kpa |
90 Kpa |
| 5.5 |
20 |
0.06 |
0.11 |
0.16 |
0.26 |
0.48 |
0.81 |
|
0.02 |
|

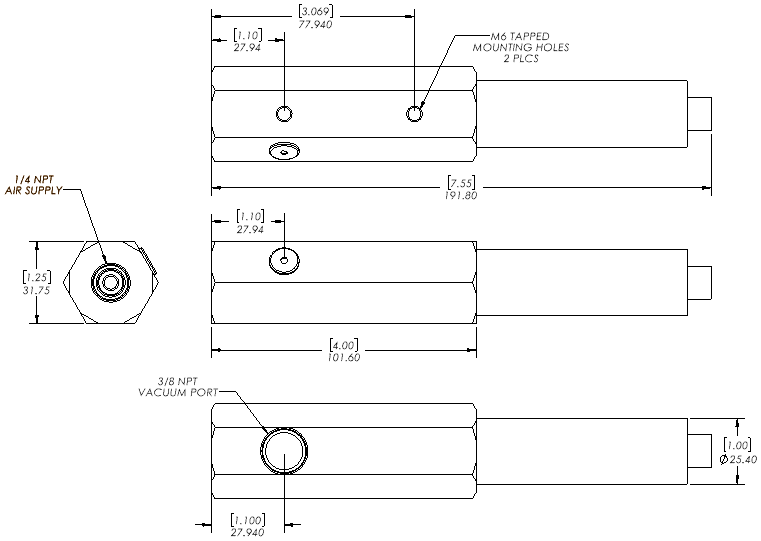

Dimensional drawing for Item: SSV4-530M
Click on the image to enlarge
Parts and accessories for Item: SSV4-530M
|
|
Sample Dimensional Drawing for Vacuum Regulators
|
|
|---|
