Quantity:
Item: PLS-S38Q-PCE-080 - 3/8 Quick-Connect Low Profile Series Poly Straine... (Full Description below)
| Item#: PLS-S38Q-PCE-080 Price: $16.76 ea.
|

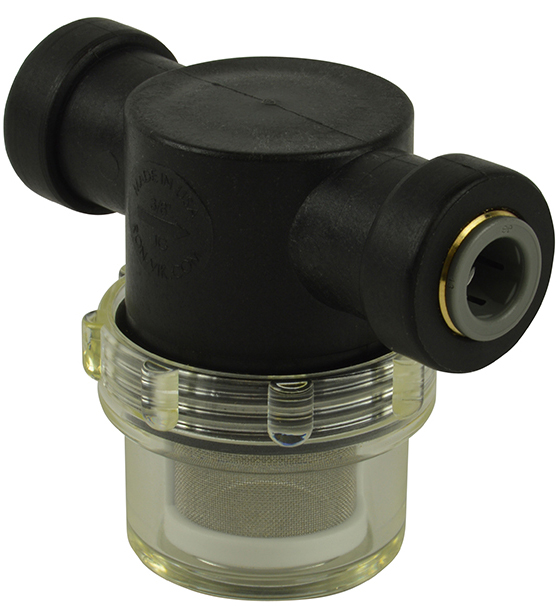

3/8 Quick-Connect Low Profile Series Poly Strainer with Clear Bowl, EPDM gasket and 80 mesh Stainless Steel Screen
.
General Specifications
Use: Not for home use Type: Low Profile Series in-line strainer Connection Type: Quick-Connect Connection: 3/8" Top Material: Black Poly Bowl Material: Clear Nylon Gasket Material: EPDM (red) Mesh Screen: 80 Mesh (178 micron) Filter Area: 3.95(Sq In) Product Weight(lbs): 0.14
Recommended replacement for: 8698T12 |
|
|
|
Additional Information
CAD files for this Product
N/A
Dimensional drawing for Item: PLS-S38Q-PCE-080
Click on the image to enlarge
Parts and accessories for Item: PLS-S38Q-PCE-080
|
Description: Low Profile Series Clear Nylon bowl (gasket sold separately)
General Specifications
Type: Low Profile Series
Material: Clear Nylon
Price: $3.43 each
Add to Cart
|
Dimensional Fitting Drawing for SB-S-CN |
|
---|
|
Description: LP 80x80 mesh caged Poly SS element (178 micron), White
General Specifications
Type: Low Profile
Material: SS 304, Polypropylene
Price: $2.24 each
Add to Cart
|
Dimensional Fitting Drawing for SE-S-80CSS |
|
---|
Replacement Gaskets Item#: SG-S-E |
Description: Low Profile Series EPDM gasket - Red. Sold individually.
General Specifications
Type: Low Profile Series, Mini Series
Material: EPDM
Price: $0.48 each
Add to Cart
|
Dimensional Fitting Drawing for SG-S-E |
|
---|
