Quantity:
Item: PLS-S12B-NCB-250 - 1/2 Hose Barb Low Profile Series Nylon Strainer w... (Full Description below)
| | Item#: PLS-S12B-NCB-250
Price: $9.56 ea.
|

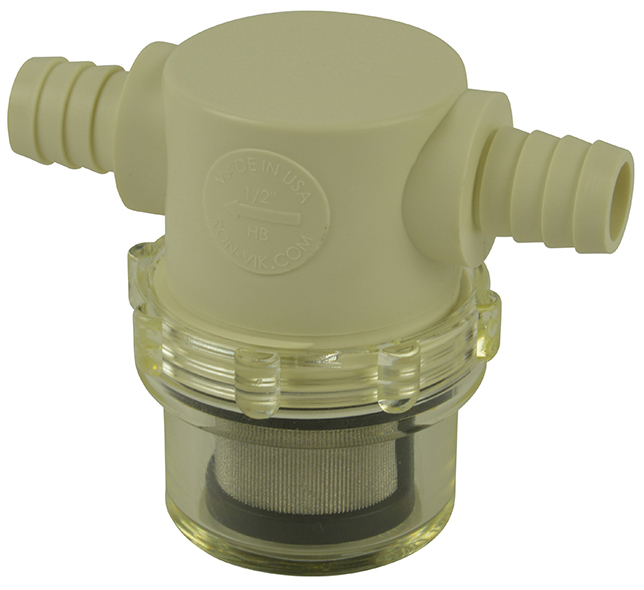

1/2 Hose Barb Low Profile Series Nylon Strainer with Clear Nylon Bowl, Buna gasket and 250 mesh Stainless Steel Screen.
General Specifications
Use: Not for home use
Type: Low Profile Series in-line strainer
Connection Type: Hose Barb
Connection: 1/2"
Top Material: White Nylon
Bowl Material: Clear Nylon
Gasket Material: Buna (black)
Mesh Screen: 250 Mesh (40 micron)
Filter Area: 3.95(Sq In)
Product Weight(lbs): 0.11 |
|
|
|
Additional Information
CAD files for this Product
N/A
Dimensional drawing for Item: PLS-S12B-NCB-250
Click on the image to enlarge
Parts and accessories for Item: PLS-S12B-NCB-250
|
Description: Low Profile Series Clear Nylon bowl (gasket sold separately)
General Specifications
Type: Low Profile Series
Material: Clear Nylon
Price: $3.43 each
Add to Cart
|
Dimensional Fitting Drawing for SB-S-CN |
|
|---|
|
Description: LP 50x250 mesh caged Poly SS element (40 micron), Black
General Specifications
Type: Low Profile
Material: SS 304, Polypropylene
Price: $2.80 each
Add to Cart
|
Dimensional Fitting Drawing for SE-S-250CSS |
|
|---|
Replacement Gaskets Item#: SG-S-B |
Description: Low Profile Series Buna gasket - Black. Sold individually.
General Specifications
Type: Low Profile Series, Mini Series
Material: Buna
Price: $0.48 each
Add to Cart
|
Dimensional Fitting Drawing for SG-S-B |
|
|---|
