Item: MB32-SIT-18M - 32mm 2.5 bellows FDA Silicone suction cup with 1/... (Full Description below)
| |
Item#: MB32-SIT-18M
Price: $11.03 ea.
|

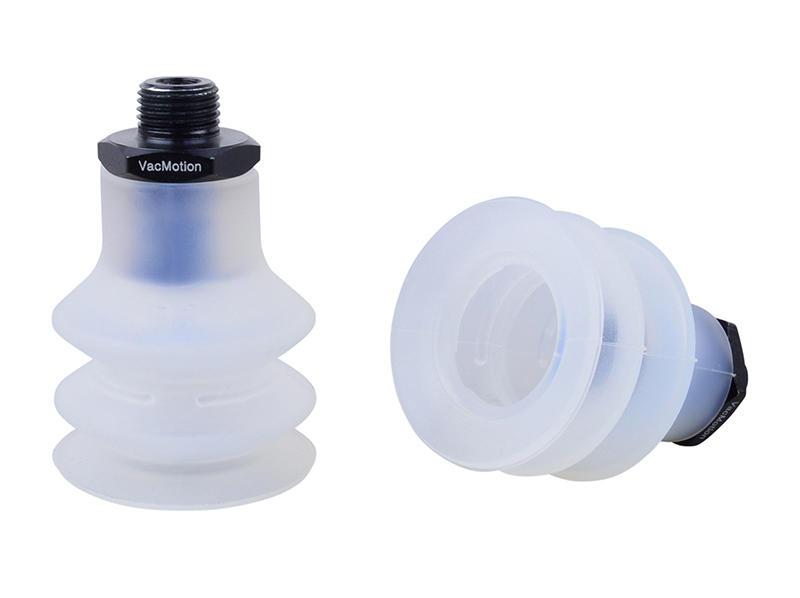

32mm 2.5 bellows FDA Silicone suction cup with 1/8 NPT male fitting
General Specifications
Style: Bellows
Cleats: No
Material: Silicone
Thread Size: 1/8" male
Bellows: 2.5
Outside Diameter: 32.0mm
Weight(lbs): .0355
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item MB32-SIT-18M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.49 lbs. |
0.74 lbs. |
| 18"Hg |
4.48 lbs. |
2.24 lbs. |
| 27"Hg |
6.73 lbs. |
3.36 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: B2.5-32-SIT-18M, PCTM-30-SI-N1 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
Click Video for Product: MB32-SIT-18M
No CAD files available for this Product
