Item: 25B.075.001.02 - 75mm 2.5 bellows FDA Silicone suction cup with G3/8 f... (Full Description below)
25B.075.001.02


Item#: 25B.075.001.02
Price: $26.33 ea.

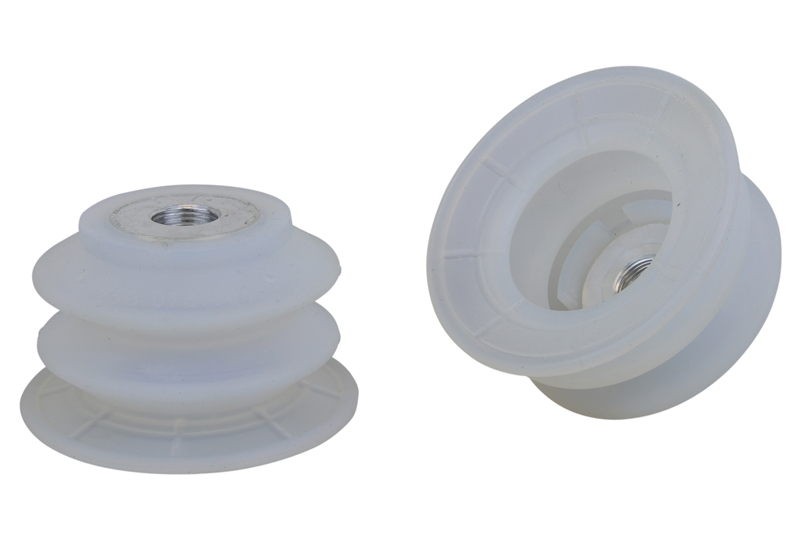

75mm 2.5 bellows FDA Silicone suction cup with G3/8 female vulcanized fitting. fitting.

General Specifications

Style: Bellows
Cleats: Yes
Material: Silicone
Thread Size: 3/8" female
Bellows: 2.5
Outside Diameter: 75.0mm
Weight(lbs): .1810
Color: Translucent
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 25B.075.001.02



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 8.21 lbs. 4.10 lbs.
18"Hg 24.65 lbs. 12.32 lbs.
27"Hg 36.97 lbs. 18.48 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
Silicone Good Good Excellent -40 to 266 °F (-40 to +130 °C)
