Item: 25B.075.001.01-G38M - 75mm 2.5 bellows NBR suction cup with G3/8 male f... (Full Description below)
| |
Item#: 25B.075.001.01-G38M
Price: $31.25 ea.
|

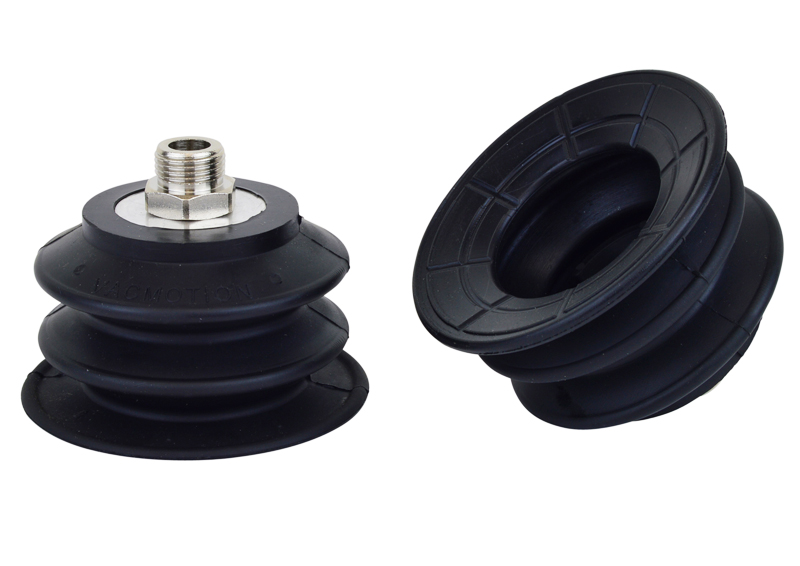

75mm 2.5 bellows NBR suction cup with G3/8 male fitting
General Specifications
Style: Bellows
Cleats: Yes
Material: NBR
Thread Size: 3/8" male
Bellows: 2.5
Outside Diameter: 75.0mm
Weight(lbs): .2530
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 25B.075.001.01-G38M
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
8.21 lbs. |
4.10 lbs. |
| 18"Hg |
24.65 lbs. |
12.32 lbs. |
| 27"Hg |
36.97 lbs. |
18.48 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: 25B.075.001.01-G38M
No CAD files available for this Product

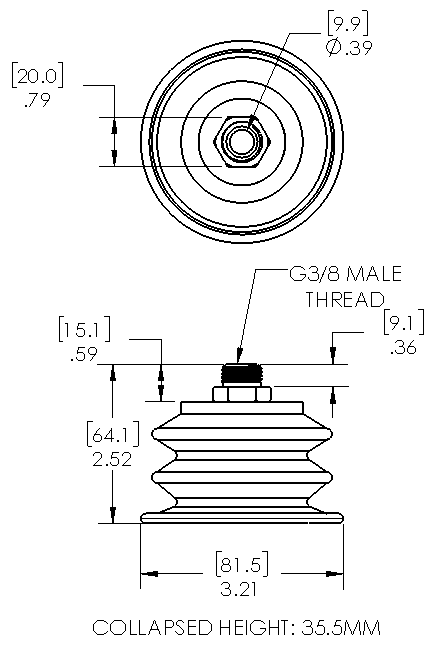

Dimensional drawing for Item: 25B.075.001.01-G38M
Click on the image to enlarge
Parts and accessories for Suction Cup: 25B.075.001.01-G38M
No parts or accessories related to this item were found.
