Home > Products > Suction Cups > 25B.075.001.02-G12M

Product DetailsDimensional DrawingParts & Accessories

Item: 25B.075.001.02-G12M - 75mm 2.5 bellows FDA Silicone suction cup with G1/2 m... (Full Description below)

Item#: 25B.075.001.02-G12M
Price: $34.58 ea.

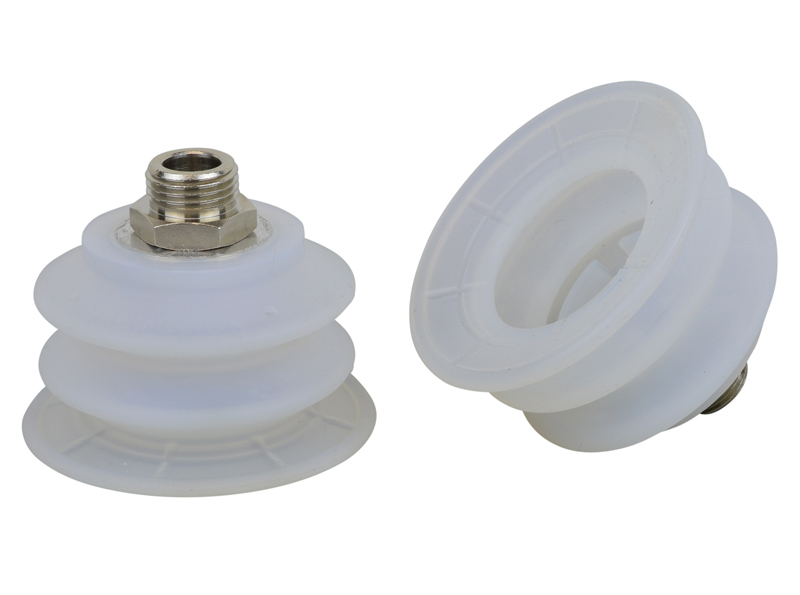

75mm 2.5 bellows FDA Silicone suction cup with G1/2 male fitting

General Specifications

Style: Bellows
Material: Silicone
Thread Size: 1/2" male
Bellows: 2.5
Outside Diameter: 75.0mm
Weight(lbs): .2805
Color: Translucent
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 25B.075.001.02-G12M


Level of Vacuum (inHg) Horizontal Vertical
6"Hg 8.21 lbs. 4.10 lbs.
18"Hg 24.65 lbs. 12.32 lbs.
27"Hg 36.97 lbs. 18.48 lbs.

***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES

Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)
