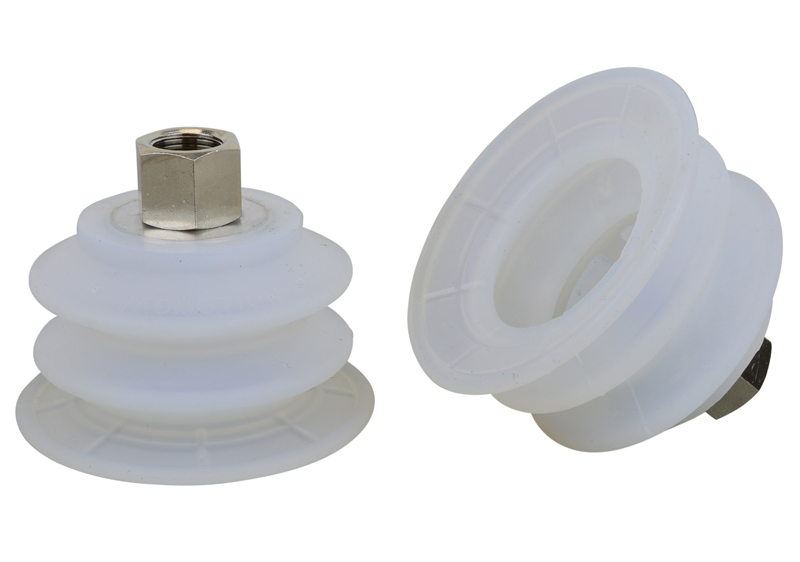

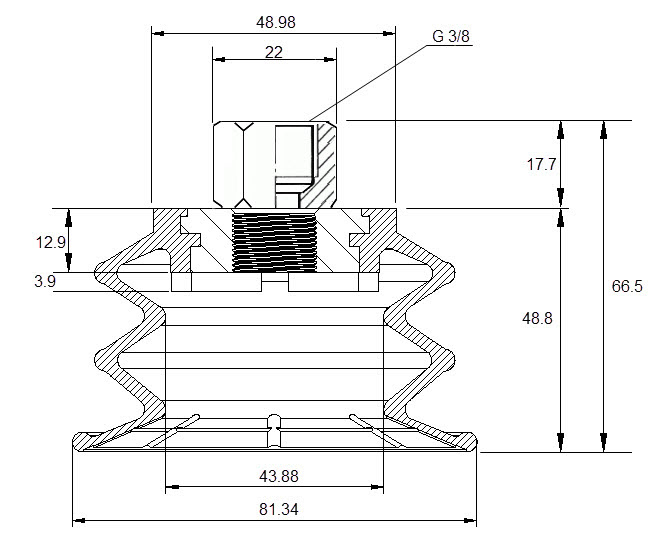

Home > Products > Suction Cups > 25B.075.001.02-G38F Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 25B.075.001.02-G38F - 75mm 2.5 bellows FDA Silicone suction cup with G3... (Full Description below) Item#: 25B.075.001.02-G38F Price: $34.64 ea. 75mm 2.5 bellows FDA Silicone suction cup with G3/8 female fitting General Specifications Style: Bellows Cleats: Yes Material: Silicone Thread Size: 3/8" female Bellows: 2.5 Outside Diameter: 75.0mm Weight(lbs): .2755 Color: Translucent Lifting Capacity: See Chart                                                                                                                                  [X] Close Lifting Capacity for Item 25B.075.001.02-G38F    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 8.21 lbs. 4.10 lbs. 18"Hg 24.65 lbs. 12.32 lbs. 27"Hg 36.97 lbs. 18.48 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos available for: 25B.075.001.02-G38F Related CAD files of Product Dimensional drawing for Item: 25B.075.001.02-G38F                                Click on the image to enlarge Parts and accessories for Suction Cup: 25B.075.001.02-G38F                                No parts or accessories related to this item were found.
