Item: 25B.075.001.02-G38M - 75mm 2.5 bellows FDA Silicone suction cup with G3... (Full Description below)
|
Item#: 25B.075.001.02-G38M Price: $32.43 ea.
|

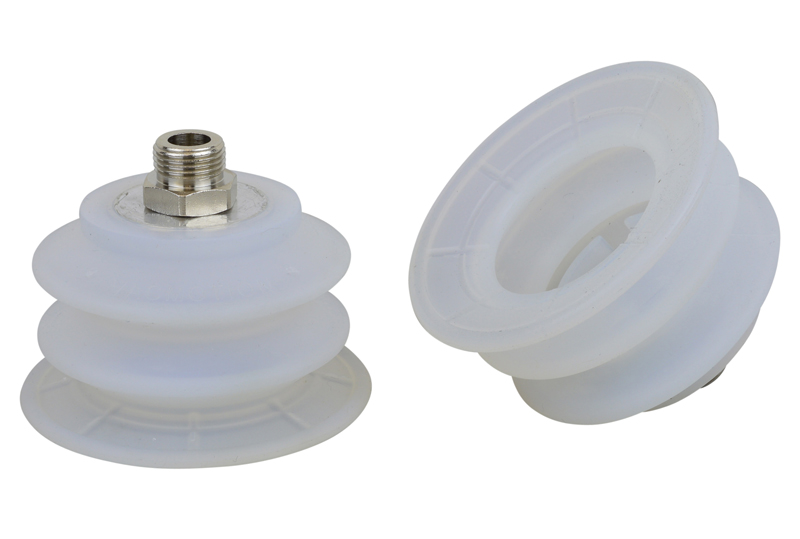

75mm 2.5 bellows FDA Silicone suction cup with G3/8 male fitting
General Specifications
Style: Bellows Cleats: Yes Material: Silicone Thread Size: 3/8" male Bellows: 2.5 Outside Diameter: 75.0mm Weight(lbs): .2460 Color: Translucent Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 25B.075.001.02-G38M
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
8.21 lbs. |
4.10 lbs. |
18"Hg |
24.65 lbs. |
12.32 lbs. |
27"Hg |
36.97 lbs. |
18.48 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos Available for: 25B.075.001.02-G38M
No CAD files available for this Product

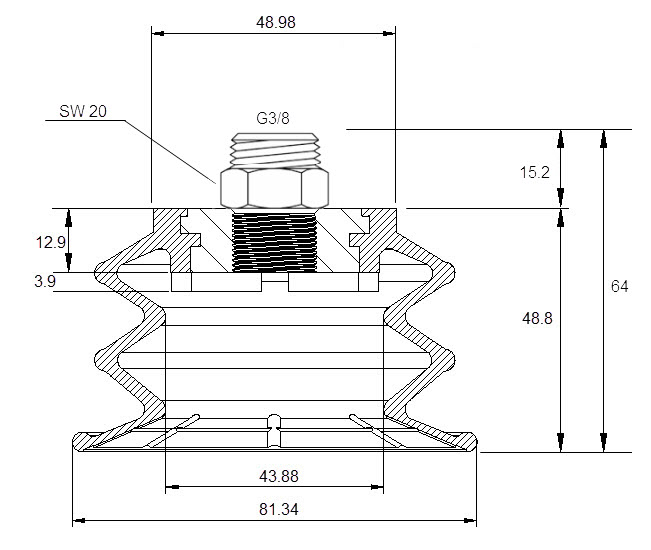

Dimensional drawing for Item: 25B.075.001.02-G38M
Click on the image to enlarge
Parts and accessories for Suction Cup: 25B.075.001.02-G38M
No parts or accessories related to this item were found.
