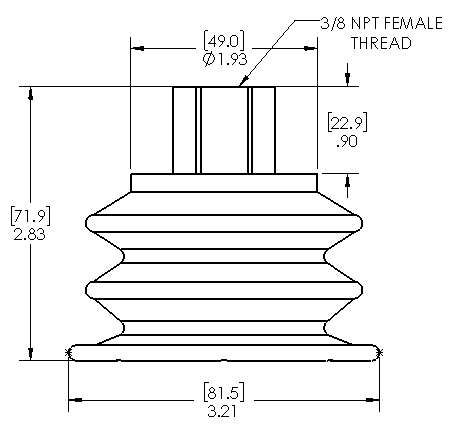

Product DetailsDimensional DrawingParts & Accessories
Quantity:

Item: 25B.075.001.01-38F - 75mm 2.5 bellows NBR suction cup with 3/8 NPT female ... (Full Description below)
25B.075.001.01-38F


Item#: 25B.075.001.01-38F
Price: $31.86 ea.

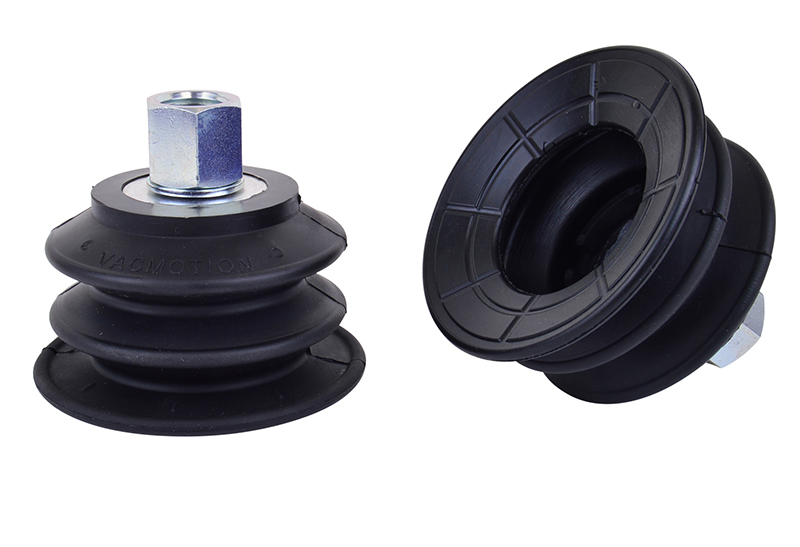

75mm 2.5 bellows NBR suction cup with 3/8 NPT female fitting

General Specifications

Style: Bellows
Cleats: No
Material: NBR
Thread Size: 3/8" female
Bellows: 2.5
Outside Diameter: 75.0mm
Weight(lbs): .2820
Color: Black
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item 25B.075.001.01-38F



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 8.21 lbs. 4.10 lbs.
18"Hg 24.65 lbs. 12.32 lbs.
27"Hg 36.97 lbs. 18.48 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
NBR Good Good Excellent -40 to 266 °F (-40 to +130 °C)

Video of Product in Action

Vacmotion Product Video
No Videos Available for: 25B.075.001.01-38F
