Item: 25B.075.001.02-38F - 75mm 2.5 bellows FDA Silicone suction cup with 3/... (Full Description below)
|
Item#: 25B.075.001.02-38F Price: $34.64 ea.
|

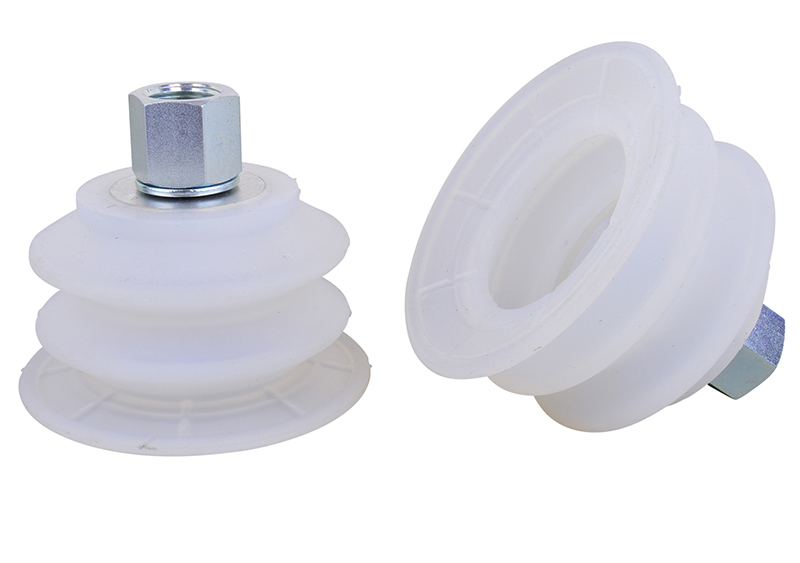

75mm 2.5 bellows FDA Silicone suction cup with 3/8 NPT female fitting
General Specifications
Style: Bellows Cleats: No Material: Silicone Thread Size: 3/8" female Bellows: 2.5 Outside Diameter: 75.0mm Weight(lbs): .2820 Color: Translucent Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 25B.075.001.02-38F
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
8.21 lbs. |
4.10 lbs. |
18"Hg |
24.65 lbs. |
12.32 lbs. |
27"Hg |
36.97 lbs. |
18.48 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
Silicone |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos Available for: 25B.075.001.02-38F
No CAD files available for this Product
Dimensional drawing for Item: 25B.075.001.02-38F
Click on the image to enlarge
Parts and accessories for Suction Cup: 25B.075.001.02-38F
No parts or accessories related to this item were found.
